NSN 2920-01-446-3235
Part Details | GLOW PLUG
2920-01-446-3235 An item with a resistance type heating element for igniting fuel-air mixtures in ENGINE, DIESEL. Used for starting engines only. Excludes SPARK PLUG.
Alternate Parts: 31153339, 31-15-3339, 40B210330, 6A843G126, 6A643G126, 2920-01-446-3235, 01-446-3235, 2920014463235, 014463235
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | JUN 30, 1997 | 01-446-3235 | 17310 ( GLOW PLUG ) |
REFERENCE DRAWINGS & PICTURES

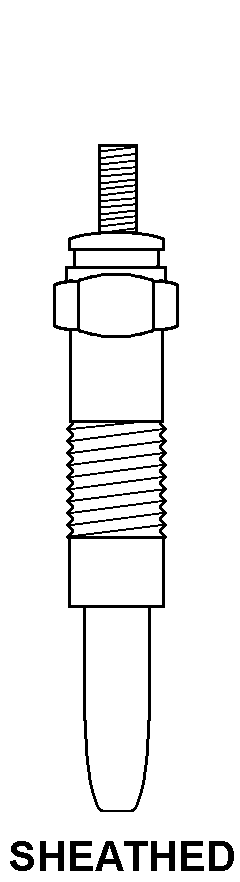

SHEATHED
Cross Reference | NSN 2920-01-446-3235
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 31-15-3339 | 81361 | EDGEWOOD CHEMICAL BIOLOGICAL CENTERECBC |
| 40B210330 | 58823 | WELLMAN THERMAL SYSTEMS CORP |
| 6A843G126 | 58823 | WELLMAN THERMAL SYSTEMS CORP |
| 6A643G126 | 58823 | WELLMAN THERMAL SYSTEMS CORP |
Technical Data | NSN 2920-01-446-3235
| Characteristic | Specifications |
|---|---|
| BODY STYLE | SHEATHED |
| DISTANCE ACROSS WRENCHING SURFACE FLATS | 0.375 INCHES |
| CURRENT RATING IN AMPS | 5.0 |
| TERMINAL TYPE AND QUANTITY | PIN |
| OVERALL LENGTH | 4.690 INCHES NOMINAL |
| END ITEM IDENTIFICATION | 1040-01-406-8923 |
