NSN 2920-01-379-3772
Part Details | IGNITION LOCK SWITCH
2920-01-379-3772 A switch which is externally actuated by a device such as a key/cylinder lock to actuate a remote lever or rod rack to activate a remote switch. The actuation device may or may not be an integal part of the switch. The primary purpose of the switch is to open and close the ignition circuit of an internal combustion engine and actuate various accessories. Excludes SWITCH, ENGINE STARTER, ELECTRICAL and SWITCH, LOCK.
Alternate Parts: 95013, 2920-01-379-3772, 01-379-3772, 2920013793772, 013793772
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | AUG 30, 1993 | 01-379-3772 | 00402 ( SWITCH, LOCK, IGNITION ) |
REFERENCE DRAWINGS & PICTURES

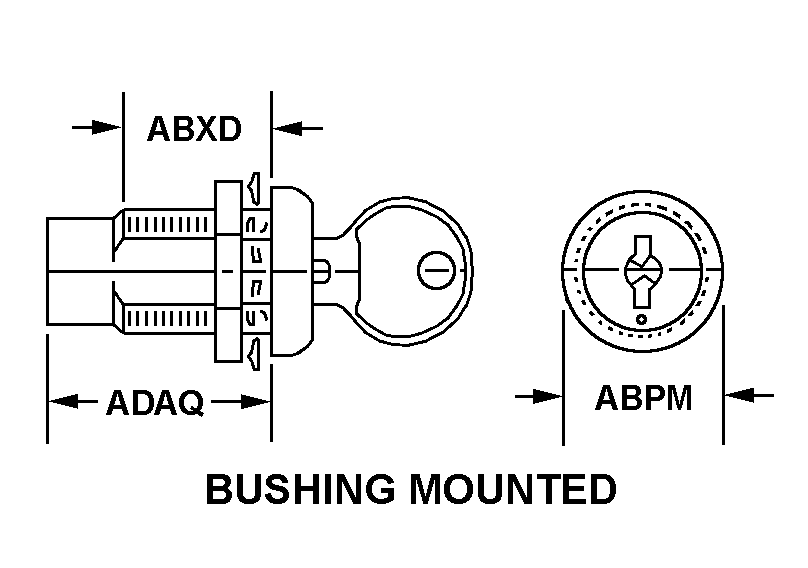

BUSHING MOUNTED
Cross Reference | NSN 2920-01-379-3772
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 95013 | 13445 | COLE HERSEE COMPANY |
Technical Data | NSN 2920-01-379-3772
| Characteristic | Specifications |
|---|---|
| SWITCH FUNCTIONAL POSITIONS | ON AND OFF |
| BODY STYLE | BUSHING MOUNTED |
| BODY DIAMETER | 1.440 INCHES NOMINAL |
| BUSHING LENGTH | 0.810 INCHES NOMINAL |
| BODY LENGTH | 1.650 INCHES NOMINAL |
