NSN 2920-01-316-0139
Part Details | ELECTRICAL ENGINE STARTER
2920-01-316-0139 An item consisting of an electric, direct current, motor and integral and associated components, primarily designed to crank an internal combustion engine, or a gas turbine engine until it starts operating under its own power. May include facilities for manual or mechanical actuation. Excludes MOTOR, ENGINE STARTER, ELECTRICAL; STARTER, MOTOR; STARTER, ENGINE (as modified); and SWITCH, ENGINE STARTER, ELECTRICAL.
Alternate Parts: AR70611, RE540302, RE59595, RE54090, 0280003930, 028000-3930, 2920-01-316-0139, 01-316-0139, 2920013160139, 013160139
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | MAR 01, 1990 | 01-316-0139 | 03577 ( STARTER, ENGINE, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES
ROUND

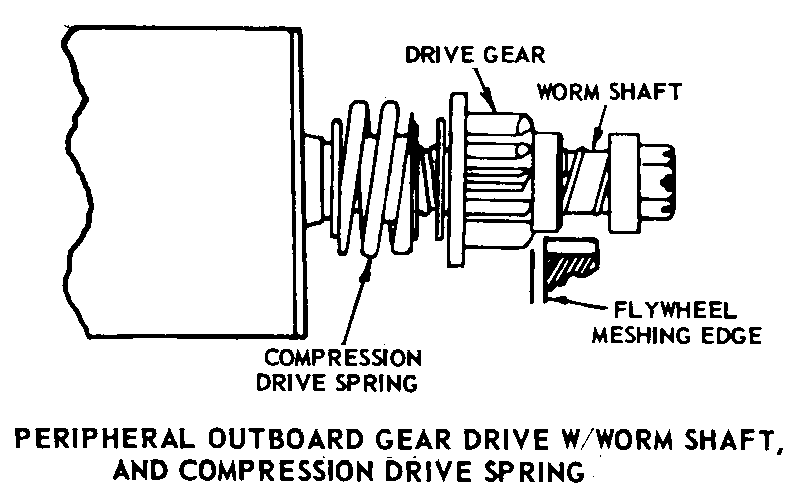

PERIPHERAL OUTBOARD GEAR DRIVE W/WORM SHAFT, AND COMPRESSION DRIVE SPRING
Cross Reference | NSN 2920-01-316-0139
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AR70611 | 75160 | DEERE & CO |
| RE540302 | 75755 | DEERE & COMPANYDBA JOHN DEERE |
| RE59595 | 75755 | DEERE & COMPANYDBA JOHN DEERE |
| RE54090 | 75755 | DEERE & COMPANYDBA JOHN DEERE |
| 028000-3930 | S5715 | NIPPONDENSO COMPANY LTD |
Technical Data | NSN 2920-01-316-0139
| Characteristic | Specifications |
|---|---|
| ENGAGING MECHANISM STYLE | PERIPHERAL OUTBOARD GEAR DRIVE W/WORM SHAFT, AND COMPRESSION DRIVE SPRING |
| MOUNTING FLANGE SHAPE STYLE | ROUND |
| VOLTAGE IN VOLTS | 12.0 |
| SHAFT ROTATION DIRECTION | CLOCKWISE |
