NSN 2920-01-309-2076
Part Details | MOTOR ARMATURE
2920-01-309-2076 An armature which is a part of a motor. See also ROTOR, MOTOR.
Alternate Parts: 1704D95G01, 2920-01-309-2076, 01-309-2076, 2920013092076, 013092076
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | OCT 13, 1989 | 01-309-2076 | 00457 ( ARMATURE, MOTOR ) |
REFERENCE DRAWINGS & PICTURES

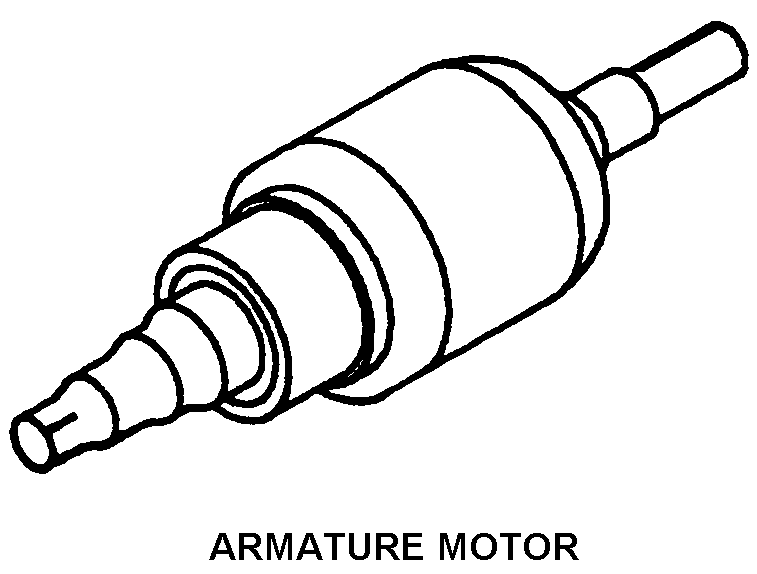

ARMATURE MOTOR
Cross Reference | NSN 2920-01-309-2076
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1704D95G01 | 11660 | WESTINGHOUSE ELECTRIC CORPCONTROL BUSINESS UNIT |
Technical Data | NSN 2920-01-309-2076
| Characteristic | Specifications |
|---|---|
| CONSTRUCTION | SLOT WOUND |
| STYLE DESIGNATOR | ARMATURE MOTOR |
| CURRENT TYPE | DC |
| OVERALL LENGTH | 135.000 INCHES NOMINAL |
| OVERALL DIAMETER | 45.000 INCHES NOMINAL |
| SPECIAL FEATURES | ONE END OF ARMATURE IS FLANGED HAVING 12 EACH 1-5/8 INCH BOLT HOLES ON A 16-3/4 INCH BOLT CIRCLE ALONG WITH 4 EACH 3/4 INCH HOLES ON A 18-1/2 INCH BOLT CIRCLE; OVERALL DIAMETER 20-3/16 INCHES; OVERALL WIDTH 3-1/2 INCHES; COUNTERBORE DIAMETER 7 INCHES; COUNTERBORE DEPTH 3/8 INCHES |
| END ITEM IDENTIFICATION | MAIN PROPULSION DC MOTOR PART NUMBER 1873B47H01 ONBOARD 140 FT COAST GUARD VESSELS |
