NSN 2920-01-307-6875
Part Details | ENGINE GENERATOR REGULATOR
2920-01-307-6875 A regulator designed to automatically maintain the current and/or voltage output of an engine generator within specified limits, regardless of variation of load or input voltages. May include cutout relay. Does not include items in which regulation is accomplished by transformer action. See also REGULATOR, CURRENT and REGULATOR, VOLTAGE.
Alternate Parts: VBC4004UT, VBC-4004UT, 8242, 8-242, VBC4004UT, VBC-4004UT, 8242, 8-242, 2920-01-307-6875, 01-307-6875, 2920013076875, 013076875
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | SEP 16, 1989 | 01-307-6875 | 17169 ( REGULATOR, ENGINE GENERATOR ) |
REFERENCE DRAWINGS & PICTURES

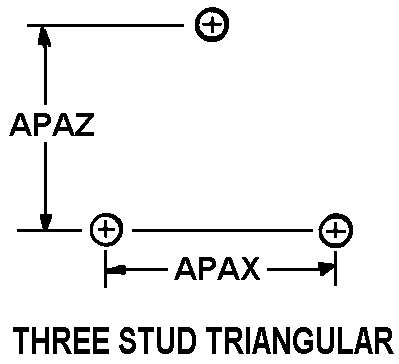

THREE STUD TRIANGULAR
Cross Reference | NSN 2920-01-307-6875
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| VBC-4004UT | 68505 | PRESTOLITE ELECTRIC INC |
| 8-242 | 68505 | PRESTOLITE ELECTRIC INC |
| VBC-4004UT | 24975 | PRESTOLITE ELECTRIC INCORPORATEDDBA PRESTOLITE ELECTRIC |
| 8-242 | 24975 | PRESTOLITE ELECTRIC INCORPORATEDDBA PRESTOLITE ELECTRIC |
Technical Data | NSN 2920-01-307-6875
| Characteristic | Specifications |
|---|---|
| SYSTEM VOLTAGE RATING | 28.0 |
| SYSTEM GROUND POLARITY | NEGATIVE |
| VOLTAGE REGULATOR UNIT QUANTITY | 1 |
| OUTPUT VOLTAGE RATING IN VOLTS | 24.0 NOMINAL |
| CUTOUT CURRENT RATING IN AMPS | 25.0 NOMINAL |
| FIELD RELAY UNIT | INCLUDED |
| TERMINAL TYPE | THREADED STUD |
| TERMINAL QUANTITY | 2 |
| TERMINAL ENCASEMENT | NOT ENCASED |
| MOUNTING STYLE | THREE STUD TRIANGULAR |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 1.375-18 UNEF |
| SHOCK MOUNT | NOT PROVIDED |
