NSN 2920-00-353-9557
Part Details | ENGINE ACCESSORY GENERATOR
2920-00-353-9557 A generator primarily designed to be mounted on an internal combustion engine, and to be driven by the engine to keep the battery in a charged condition. May also supply current for the engine ignition system and/or electrical equipment which is connected to the battery circuit. Includes alternating current generators designed for use with a rectifier. Excludes the major generator of "GENERATING SETS". For generators specifically designed for aircraft use and not mounted on the engine, see GENERATOR, DIRECT CURRENT.
Alternate Parts: 1117382, 1117389, 1117382, 1117389, 2920-00-353-9557, 00-353-9557, 2920003539557, 003539557
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | JAN 01, 1963 | 00-353-9557 | 17311 ( GENERATOR, ENGINE ACCESSORY ) |
REFERENCE DRAWINGS & PICTURES
ROUND FLANGE WITH HOLES EQUALLY SPACED

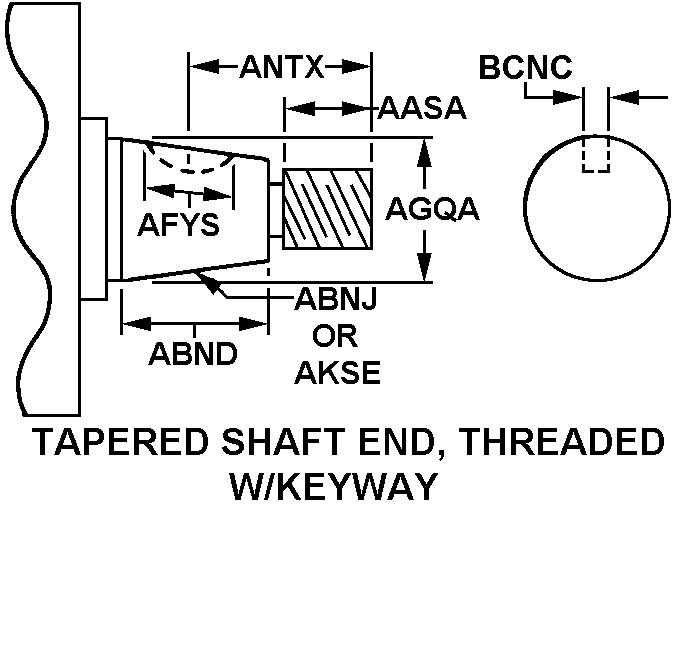

TAPERED SHAFT END, THREADED W/KEYWAY
Cross Reference | NSN 2920-00-353-9557
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1117382 | 16764 | GENERAL MOTORS CORPDELCO REMY DIV |
| 1117389 | 16764 | GENERAL MOTORS CORPDELCO REMY DIV |
| 1117382 | 1LW55 | REMY, INC. |
| 1117389 | 1LW55 | REMY, INC. |
Technical Data | NSN 2920-00-353-9557
| Characteristic | Specifications |
|---|---|
| VOLTAGE IN VOLTS | 24.0 |
| MAXIMUM OUTPUT CURRENT RATING IN AMPS | 60.0 |
| ARMATURE MINIMUM SPEED IN RPM AT FULL CURRENT OUTPUT | 1880 |
| GROUNDING METHOD | INTERNAL |
| SHAFT ROTATION DIRECTION | CLOCKWISE |
| MOUNTING STYLE | 2 ROUND FLANGE WITH HOLES EQUALLY SPACED |
| PILOT HEIGHT | 0.438 INCHES NOMINAL |
| DISTANCE FROM RAISED FACE TO FIRST MOUNTING HOLE CENTER | 5.156 INCHES NOMINAL |
| DISTANCE FROM RAISED FACE TO SECOND MOUNTING CENTER | 9.719 INCHES NOMINAL |
| ANGULAR DEVIATION OF FIRST HOLE FROM TOP CENTER IN DEG | 90.0 |
| ANGULAR DEVIATION OF SECOND HOLE FROM FIRST HOLE IN DEG | 90.0 |
| MOUNTING HOLE THREAD SERIES DESIGNATOR | UNF |
| MOUNTING HOLE THREAD DIAMETER | 0.375 INCHES NOMINAL |
| MOUNTING HOLE THREAD QUANTITY PER INCH | 24 |
| SHAFT DRIVE END STYLE | TAPERED SHAFT END, THREADED W/KEYWAY |
| THREAD LENGTH | 0.844 INCHES NOMINAL |
| TAPER LENGTH | 1.156 INCHES NOMINAL |
| LARGEST DIAMETER | 1.250 INCHES NOMINAL |
| SUBMERSIBILITY | NONSUBMERSIBLE |
| ENVIRONMENTAL PROTECTION | CORROSION RESISTANT AND FUNGUS RESISTANT |
