NSN 2910-00-315-0247
Part Details | FILLER OPENING CAP
2910-00-315-0247 A part basically circular in shape, designed to cover or seal the filler-neck or inlet opening of a fuel tank, radiator, oil reservoir, liquid storage tank or the like. It may be either permanently attached to the object for which it is designed or provided with a means of removal and replacement. Excludes CAP, VENT, FUEL STORAGE TANK; and COVER (1), (as modified).
Alternate Parts: 8135485, 383A, 2910-00-315-0247, 00-315-0247, 2910003150247, 003150247
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | JAN 01, 1963 | 00-315-0247 | 30128 ( CAP, FILLER OPENING ) |
REFERENCE DRAWINGS & PICTURES

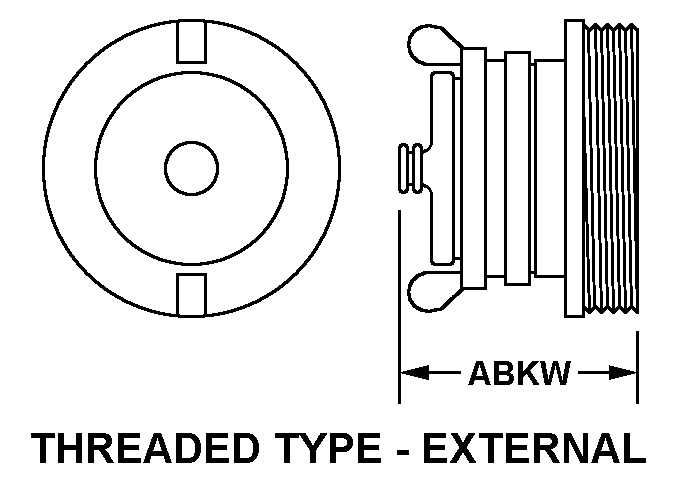

THREADED TYPE-EXTERNAL
Cross Reference | NSN 2910-00-315-0247
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8135485 | 72915 | GENERAL MOTORS CORPELECTRO-MOTIVE DIV |
| 383A | 49234 | PROTECTOSEAL COCONTAINER DIV |
Technical Data | NSN 2910-00-315-0247
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | THREADED TYPE-EXTERNAL |
| SYSTEM FOR WHICH DESIGNED | PRESSURIZED |
| PRESSURE RELIEF METHOD | MANUAL |
| THREAD SERIES DESIGNATOR | NPT |
| THREAD DIAMETER | 3.0000 INCHES NOMINAL |
| THREAD QUANTITY | 8.000 PER INCH |
| THREAD CLASS | 2A |
| GRIPPING ACCOMMODATION TYPE | D ANY ACCEPTABLE |
| FEATURES PROVIDED | SCREEN AND SEAL |
| SPECIAL FEATURES | CONE SHAPE FILTERING SCREEN,8.000 IN. LG,DETACHABLE FROM CAP |
