NSN 2810-00-694-0125
Part Details | ENGINE POPPET VALVE TAPPET
2810-00-694-0125 A cylindrically shaped metal item designed to transmit intermittent motion from the cam lobe on a shaft or cam ring, to the engine poppet valve. It may be mechanically or hydraulically operating, and may include adjusting devices.
Alternate Parts: ASW126288, 126288, 2810-00-694-0125, 00-694-0125, 2810006940125, 006940125
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | JAN 01, 1963 | 00-694-0125 | 22199 ( TAPPET, ENGINE POPPET VALVE ) |
REFERENCE DRAWINGS & PICTURES

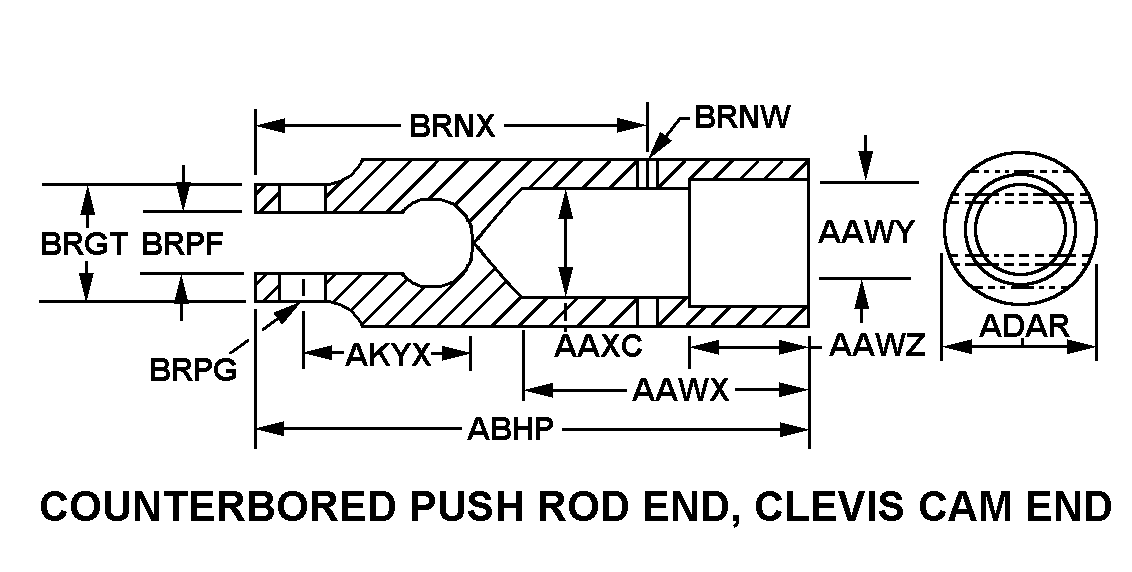

COUNTERBORED PUSH ROD END, CLEVIS CAM END
Cross Reference | NSN 2810-00-694-0125
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ASW126288 | 12776 | AIRCRAFT SUPPLIES |
| 126288 | 0AHP5 | CURTISS-WRIGHT CONTROLS, INCDIV SENSORS & CONTROLS |
Technical Data | NSN 2810-00-694-0125
| Characteristic | Specifications |
|---|---|
| OPERATION METHOD | MECHANICAL |
| MATERIAL AND LOCATION | STEEL OVERALL |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| STYLE DESIGNATOR | COUNTERBORED PUSH ROD END, CLEVIS CAM END |
| CONCENTRIC HOLE DEPTH | 2.380 INCHES MINIMUM AND 2.420 INCHES MAXIMUM |
| COUNTERBORE DIAMETER | 0.656 INCHES MINIMUM AND 0.657 INCHES MAXIMUM |
| COUNTERBORE DEPTH | 0.980 INCHES MINIMUM AND 1.120 INCHES MAXIMUM |
| CONCENTRIC HOLE DIAMETER | 0.641 INCHES NOMINAL |
| OVERALL LENGTH | 3.740 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 0.811 INCHES MINIMUM AND 0.812 INCHES MAXIMUM |
| FORK DEPTH | 0.868 INCHES NOMINAL |
| FORK HEIGHT | 0.620 INCHES NOMINAL |
| BODY HOLE DIAMETER | 0.122 INCHES MINIMUM AND 0.126 INCHES MAXIMUM |
| DISTANCE FROM BODY HOLE CENTER TO CAM END | 2.453 INCHES MINIMUM AND 2.467 INCHES MAXIMUM |
| FORK SLOT WIDTH | 0.310 INCHES MINIMUM AND 0.314 INCHES MAXIMUM |
| FORK HOLE DIAMETER | 0.439 INCHES MINIMUM AND 0.440 INCHES MAXIMUM |
| ADJUSTABILITY | NONADJUSTABLE |
| SIZE DESIGNATION | STANDARD |
| FSC APPLICATION DATA | ENGINE,ACFT,RECIPROCATING |
