NSN 2590-01-038-2259
Part Details | FILLER OPENING CAP
2590-01-038-2259 A part basically circular in shape, designed to cover or seal the filler-neck or inlet opening of a fuel tank, radiator, oil reservoir, liquid storage tank or the like. It may be either permanently attached to the object for which it is designed or provided with a means of removal and replacement. Excludes CAP, VENT, FUEL STORAGE TANK; and COVER (1), (as modified).
Alternate Parts: 554843, 554843, 2590-01-038-2259, 01-038-2259, 2590010382259, 010382259
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | APR 01, 1977 | 01-038-2259 | 30128 ( CAP, FILLER OPENING ) |
REFERENCE DRAWINGS & PICTURES

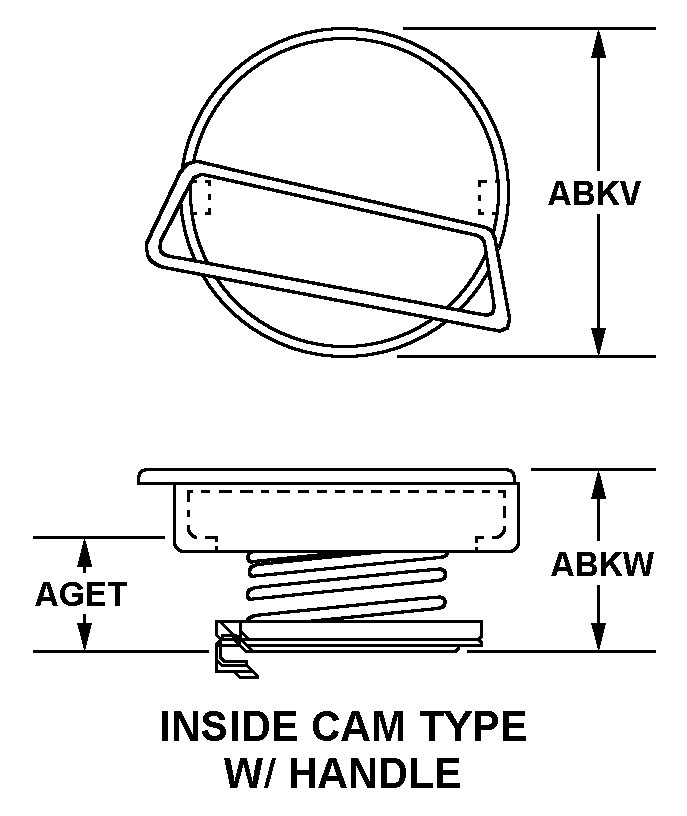

INSIDE CAM TYPE W/ HANDLE
Cross Reference | NSN 2590-01-038-2259
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 554843 | 40152 | VME AMERICAS INCSUB OF VME GROUP N V |
| 554843 | 1X0J7 | VOLVO CONSTRUCTION EQUIPMENT NORTHAMERICA, LLC |
Technical Data | NSN 2590-01-038-2259
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | INSIDE CAM TYPE W/ HANDLE |
| OUTSIDE DIAMETER | 4.180 INCHES NOMINAL |
| OVERALL HEIGHT | 1.870 INCHES NOMINAL |
| SEALING LENGTH | 1.400 INCHES NOMINAL |
| SYSTEM FOR WHICH DESIGNED | PRESSURIZED |
| MAXIMUM WORKING PRESSURE | 7.000 POUNDS PER SQUARE INCH |
| PRESSURE RELIEF METHOD | AUTOMATIC |
| FILLER NECK DIAMETER FOR WHICH DESIGNED | 3.220 INCHES NOMINAL |
| CAM QUANTITY | 2 |
| GRIPPING ACCOMMODATION TYPE | F ANY ACCEPTABLE |
| RETAINING DEVICE TYPE | CHAIN AND WIRE HOOK |
| RETAINING DEVICE LENGTH | 12.000 INCHES NOMINAL |
| SPECIAL MARKINGS | TO CLOSE,REMOVE SLOWLY,WARNING USE HYDRAULIC ONLY |
