NSN 2530-00-756-1210
Part Details | PNEUMATIC TIRE WHEEL
2530-00-756-1210 A wheel with an integral or removable rim designed to mount a pneumatic tire. Includes wheels without rims but designed to accommodate pneumatic tire rims. May include tire(s). Excludes WHEEL, LANDING GEAR.
Alternate Parts: AA59494, AA5949423E3, AA59494-2/3-E-3, AA594945A6, A-A-59494-5A6, MS243251, MS24325-1, 2530-00-756-1210, 00-756-1210, 2530007561210, 007561210
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | JAN 01, 1962 | 00-756-1210 | 17959 ( WHEEL, PNEUMATIC TIRE ) |
REFERENCE DRAWINGS & PICTURES
FLAT

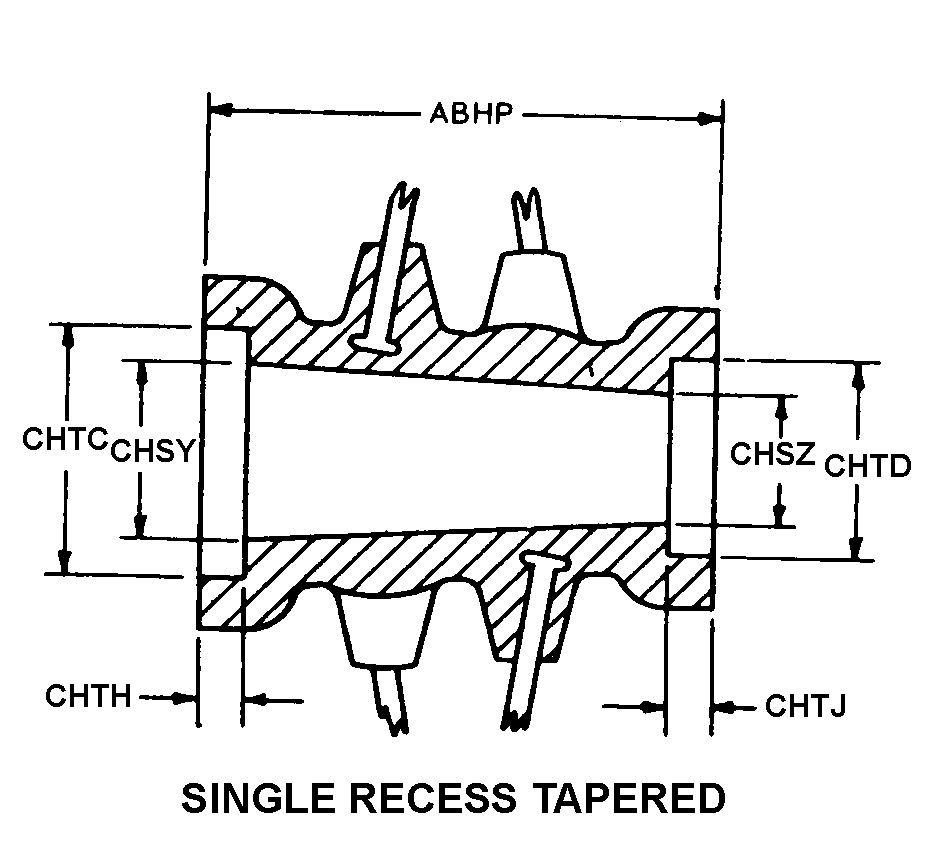

SINGLE RECESS TAPERED
Cross Reference | NSN 2530-00-756-1210
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AA59494 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTIONPROMULGATED BY GENERAL SERVICES |
| AA59494-2/3-E-3 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTIONPROMULGATED BY GENERAL SERVICES |
| A-A-59494-5A6 | 56190 | METADURE PARTS & SALES, INC.DBA METADURE PARTS & SALES |
| MS24325-1 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
Technical Data | NSN 2530-00-756-1210
| Characteristic | Specifications |
|---|---|
| TIRE RIM NOMINAL DIAMETER | 9.000 INCHES |
| TIRE | INCLUDED |
| SIZE DESIGNATOR | 9.00 |
| PLY RATING | 6 |
| DESIGN FORM | DISK |
| DISK TYPE | DOUBLE |
| LIGHTENING HOLE | NOT INCLUDED |
| DESIGN TYPE | DIVIDED WHEEL |
| RIM STYLE | 5 FLAT |
| GROOVE DEPTH | 0.020 INCHES MINIMUM AND 0.050 INCHES MAXIMUM |
| OVERALL WIDTH | 5.040 INCHES NOMINAL |
| METAL THICKNESS | 0.1495 INCHES MINIMUM AND 0.1560 INCHES MAXIMUM |
| VALVE HOLE SHAPE | ROUND |
| HOLE LOCATION | LOCATED 1/4 IN. OFFSET FROM CENTER OF RIM |
| MOUNTING TYPE FOR WHICH DESIGNED | SINGLE TIRE |
| HUB CHARACTERISTIC | DEMOUNTABLE |
| HUB | INCLUDED |
| HUB STYLE | SINGLE RECESS TAPERED |
| OVERALL LENGTH | 7.0678 INCHES NOMINAL |
| AXLE RECESS MAJOR DIAMETER | 1.6245 INCHES NOMINAL |
| AXLE RECESS MINOR DIAMETER | 1.2495 INCHES NOMINAL |
| SAND BAND RECESS MAJOR DIAMETER | 2.125 INCHES NOMINAL |
| MAJOR SAND BAND RECESS DEPTH | 0.625 INCHES NOMINAL |
| LUBRICATION FITTING | NOT PROVIDED |
| BEARINGS | INCLUDED |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| END ITEM IDENTIFICATION | GRUMMAN A-10 AIRCRAFT;AIRCRAFT, HORNET F/A-18 |
