NSN 2530-00-678-6128
Part Details | BRAKE SHOE WEAR PLATE
2530-00-678-6128 A rigid replaceable metal item, designed to be mounted on the actuating or cam end of a brake shoe to receive the thrust of the operating cam.
Alternate Parts: UB3012, UB3012, 8687042, 2530-00-678-6128, 00-678-6128, 2530006786128, 006786128
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | JAN 01, 1963 | 00-678-6128 | 11388 ( PLATE, WEAR, BRAKE SHOE ) |

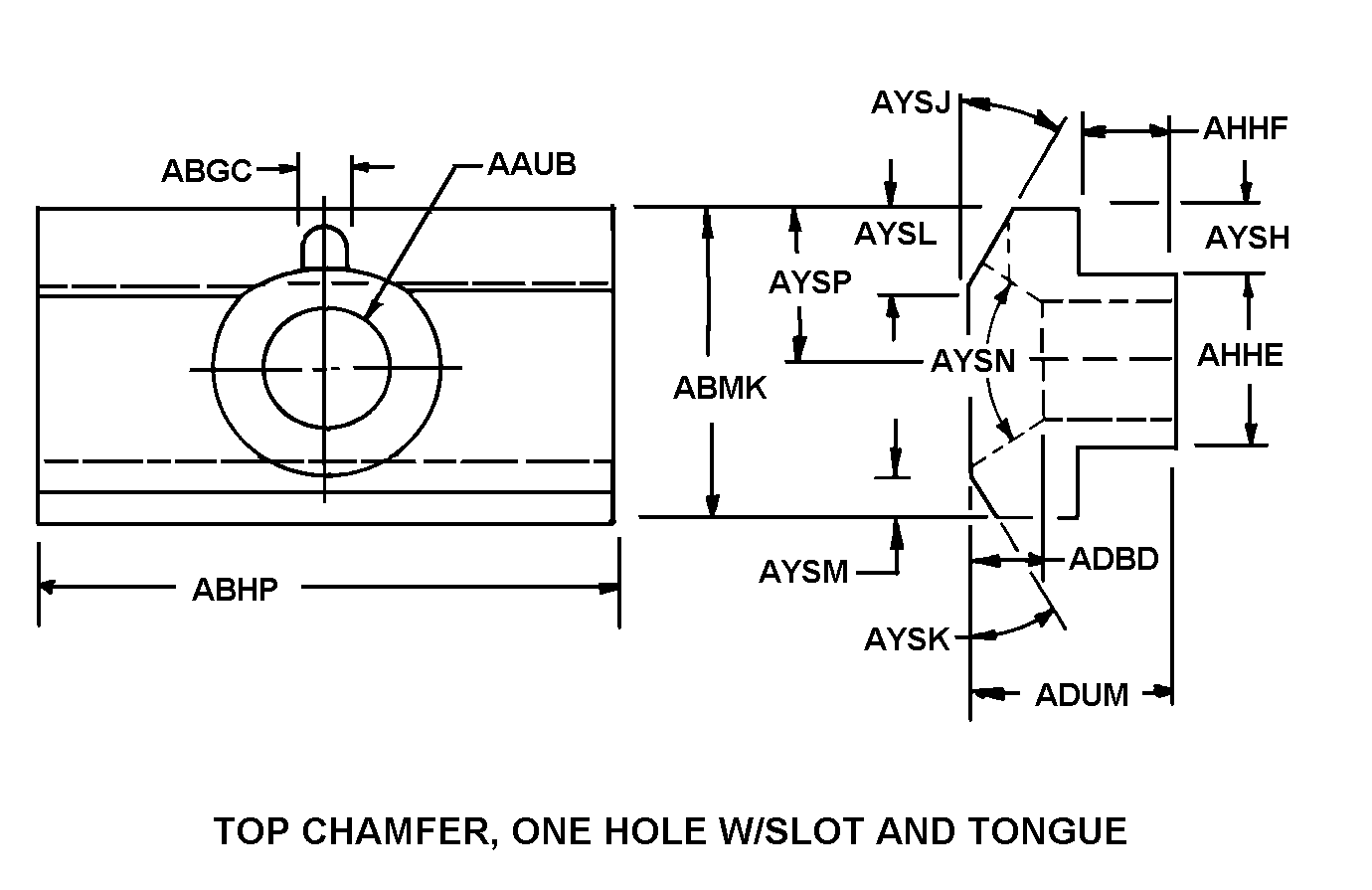

REFERENCE DRAWINGS & PICTURES
TOP CHAMFER, ONE HOLE AND TONGUE
Cross Reference | NSN 2530-00-678-6128
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| UB3012 | 56697 | STANDARD FORGE AND AXLE CO INC |
| UB3012 | 78550 | TIMPTE INC |
| 8687042 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 2530-00-678-6128
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | TOP CHAMFER, ONE HOLE AND TONGUE |
| HOLE DIAMETER | 0.688 INCHES NOMINAL |
| OVERALL LENGTH | 2.000 INCHES NOMINAL |
| OVERALL WIDTH | 1.625 INCHES NOMINAL |
| COUNTERSINK DEPTH | 0.200 INCHES NOMINAL |
| OVERALL THICKNESS | 0.375 INCHES NOMINAL |
| TONGUE WIDTH | 0.622 INCHES NOMINAL |
| TONGUE THICKNESS | 0.113 INCHES NOMINAL |
| DISTANCE FROM EDGE OF PLATE TO TONGUE | 0.625 INCHES NOMINAL |
| COUNTERSINK DEG | 82.0 |
| DISTANCE FROM CENTER OF HOLE TO EDGE OF PLATE | 0.813 INCHES NOMINAL |
| END ITEM IDENTIFICATION | TRAILER, SEMI (M172A1) |
