NSN 2530-00-603-5768
Part Details | PNEUMATIC TIRE WHEEL
2530-00-603-5768 A wheel with an integral or removable rim designed to mount a pneumatic tire. Includes wheels without rims but designed to accommodate pneumatic tire rims. May include tire(s). Excludes WHEEL, LANDING GEAR.
Alternate Parts: B65950D8, B65950DK, 65950D8, B65950D8, 20465950D8, 204-65950D8, 2530006035768, 2610, 2-6-10, 65950D8, WH0246, MS530446, MS53044-6, 103513R91, 103513R91, 65950D1, 7388820, 2530-00-603-5768, 00-603-5768, 2530006035768, 006035768
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | JAN 01, 1961 | 00-603-5768 | 17959 ( WHEEL, PNEUMATIC TIRE ) |
REFERENCE DRAWINGS & PICTURES

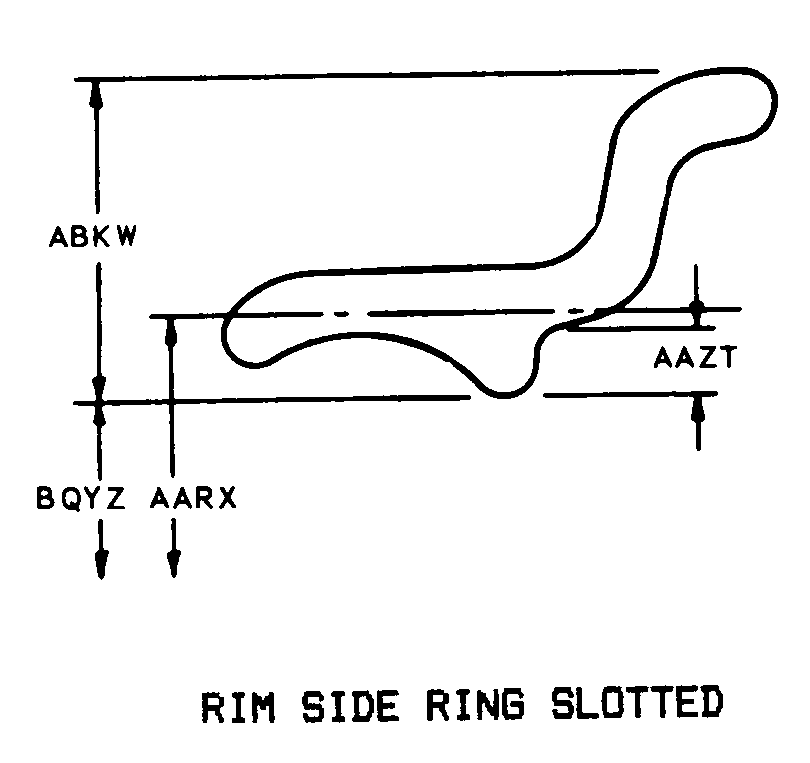

RIM SIDE RING SLOTTED
Cross Reference | NSN 2530-00-603-5768
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| B65950D8 | 09386 | ALLIEDSIGNAL INCALLIEDSIGNAL BRAKING SYSTEMS-WHEEL |
| B65950DK | 09386 | ALLIEDSIGNAL INCALLIEDSIGNAL BRAKING SYSTEMS-WHEEL |
| 65950D8 | 09386 | ALLIEDSIGNAL INCALLIEDSIGNAL BRAKING SYSTEMS-WHEEL |
| B65950D8 | 71282 | BUDD CO THE |
| 204-65950D8 | 81336 | CHIEF OF ENGINEERSDEPT OF ARMY |
| 2530006035768 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
| 2-6-10 | 78880 | FLXIBLE CO THE |
| 65950D8 | 23382 | FWD SEAGRAVE HOLDINGS, LP |
| WH0246 | 62161 | HUTCHINSON INDUSTRIES, INC.DIV DEFENSE AND INDUSTRY |
| MS53044-6 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
| 103513R91 | 31007 | NAVISTAR INTERNATIONAL CORPORATIONDBA NAVISTAR |
| 103513R91 | 89346 | NAVISTAR INTL CORP TRUCK BR OHIOPLANT |
| 65950D1 | 22852 | SPALLA INC |
| 7388820 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 2530-00-603-5768
| Characteristic | Specifications |
|---|---|
| TIRE RIM NOMINAL DIAMETER | 20.000 INCHES |
| WHEEL ASSEMBLY NATIONAL STOCK NUMBER | A2530015067244$A2530015068319 |
| TIRE | NOT INCLUDED |
| DESIGN FORM | DISK |
| DISK TYPE | SINGLE |
| MOUNTING FACE TYPE | CONVEX |
| OFFSET DISTANCE FROM RIM CENTERLINE TO OUTSIDE WHEEL MOUNTING FACE | 6.813 INCHES NOMINAL |
| LIGHTENING HOLE | INCLUDED |
| LIGHTENING HOLE QUANTITY | 5 |
| LIGHTENING HOLE HUB CAP MOUNTING FEATURE | NOT INCLUDED |
| DESIGN TYPE | INTEGRAL RIM |
| GROOVE DEPTH | 1.600 INCHES NOMINAL |
| OVERALL WIDTH | 8.926 INCHES NOMINAL |
| EFFECTIVE WIDTH | 7.562 INCHES NOMINAL |
| RING TYPE FOR WHICH DESIGNED | SIDE |
| RING | INCLUDED |
| RING STYLE | RIM SIDE RING SLOTTED |
| BOLT/STUD MOUNTING FACILITY | NOT INCLUDED |
| VALVE HOLE SHAPE | SLOTTED |
| MOUNTING TYPE FOR WHICH DESIGNED | SINGLE TIRE |
| HUB CHARACTERISTIC | DEMOUNTABLE |
| HUB | NOT INCLUDED |
| BEARINGS | NOT INCLUDED |
| PILOT HOLE DIAMETER | 8.725 INCHES MINIMUM AND 8.729 INCHES MAXIMUM |
| MOUNTING HOLE QUANTITY | 10 |
| MOUNTING HOLE DIAMETER | 1.210 INCHES MINIMUM AND 1.220 INCHES MAXIMUM |
| MOUNTING BOLT CIRCLE DIAMETER | 11.243 INCHES MINIMUM AND 11.257 INCHES MAXIMUM |
| FSC APPLICATION DATA | WHEELS,VEHICULAR |
