Part Details | AUTOMOTIVE WHEEL SIDE RING
2530-00-562-8912 A one-piece metal device designed to fit the outer circumference of a wheel or wheel rim. It is held in position by a locking ring or has self-locking features for positioning and retaining a pneumatic tire. It may also be split and/or held by bolts and studs.
Alternate Parts: 5621737, 2530-00-562-8912, 00-562-8912, 2530005628912, 005628912
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | JAN 01, 1963 | 00-562-8912 | 10969 ( RING, SIDE, AUTOMOTIVE WHEEL ) |
REFERENCE DRAWINGS & PICTURES

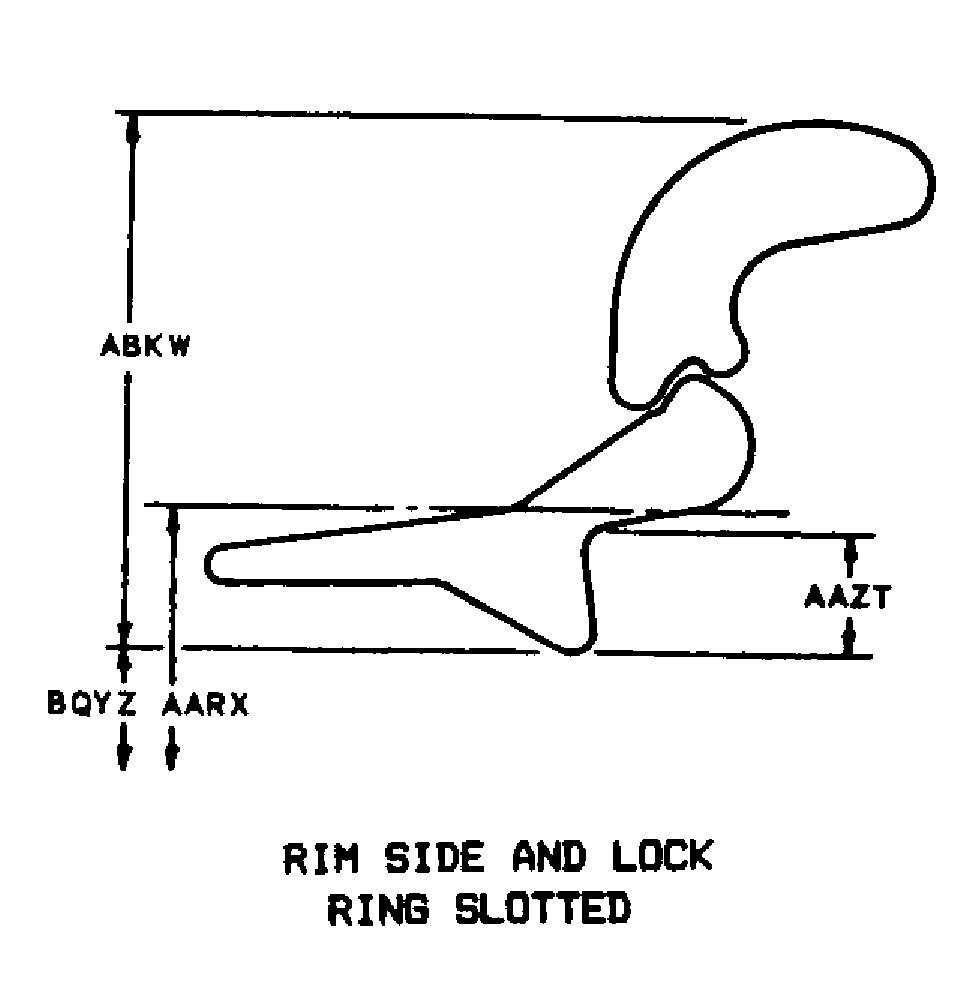

RIM SIDE AND LOCK RING SLOTTED
Cross Reference | NSN 2530-00-562-8912
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5621737 | 19204 | ARMY, UNITED STATES DEPARTMENT OFTHE |
Technical Data | NSN 2530-00-562-8912
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | RIM SIDE AND LOCK RING SLOTTED |
| INSIDE DIAMETER | 19.610 INCHES NOMINAL |
| SLOT DEPTH | 1.085 INCHES NOMINAL |
| OVERALL HEIGHT | 2.452 INCHES NOMINAL |
| INSIDE CIRCUMFERENCE | 61.654 INCHES NOMINAL |
| DESIGN TYPE | ENDLESS BOLTED |
| HOLE QUANTITY | 12 |
| HOLE DIAMETER | 0.711 INCHES NOMINAL |
| MOUNTING HOLE SPACING | EQUALLY SPACED ON A 18.594 IN. BOLT CIRCLE |
| MATERIAL | STEEL COMP 1030 |
| MATERIAL DOCUMENT AND CLASSIFICATION | AISI 1030 ASSN STD SINGLE MATERIAL RESPONSE |
| VALVE CLEARANCE NOTCH QUANTITY | 1 |
