NSN 2530-00-557-7519
Part Details | AUTOMOTIVE WHEEL SIDE AND LOCK RING
2530-00-557-7519 A two-piece metal device consisting of a side ring and matching lock ring, usually loosely rivited together, which is designed to fit the outer circumference of a wheel rim for positioning and retaining a pneumatic tire.
Alternate Parts: 21863E7, 21863E7, 155716015, 21863E7, 5577519, 5577519, 398319, 2530-00-557-7519, 00-557-7519, 2530005577519, 005577519
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | JAN 01, 1963 | 00-557-7519 | 10970 ( RING, SIDE AND LOCK, AUTOMOTIVE WHEEL ) |
REFERENCE DRAWINGS & PICTURES

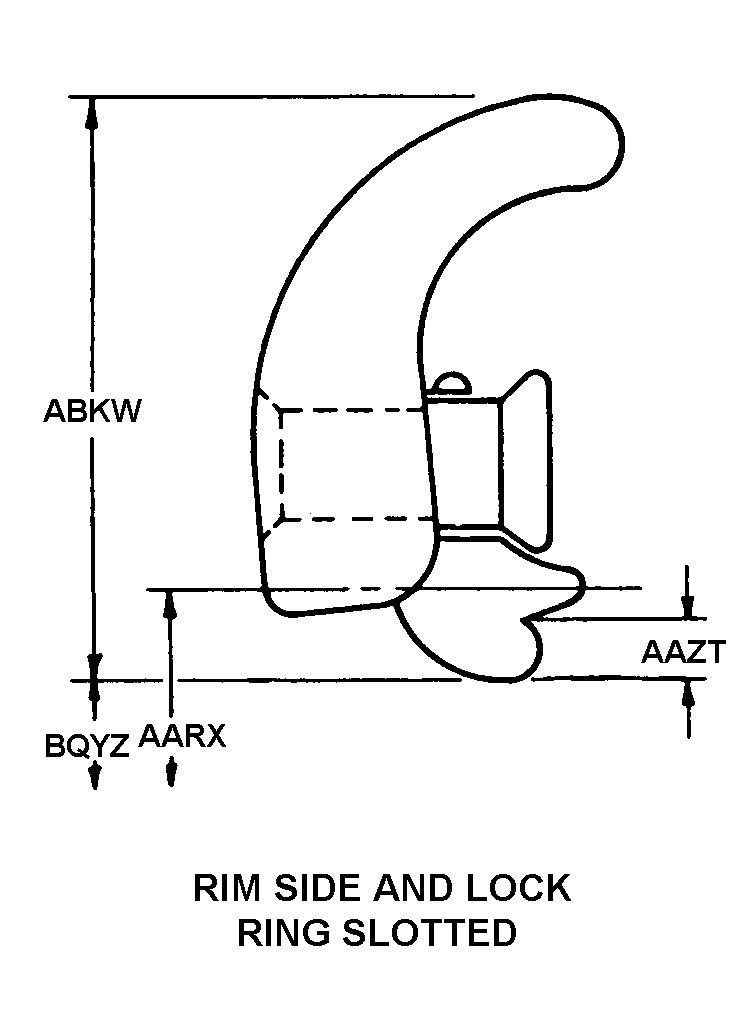

RIM SIDE AND LOCK RING SLOTTED
Cross Reference | NSN 2530-00-557-7519
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 21863E7 | 09386 | ALLIEDSIGNAL INCALLIEDSIGNAL BRAKING SYSTEMS-WHEEL |
| 21863E7 | 71282 | BUDD CO THE |
| 155716015 | 63734 | KAITLIN CORP |
| 21863E7 | 63734 | KAITLIN CORP |
| 5577519 | 22852 | SPALLA INC |
| 5577519 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
| 398319 | 65282 | WHITE MOTOR CORP |
Technical Data | NSN 2530-00-557-7519
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | RIM SIDE AND LOCK RING SLOTTED |
| INSIDE DIAMETER | 20.000 INCHES NOMINAL |
| SLOT DEPTH | 0.328 INCHES NOMINAL |
| OVERALL HEIGHT | 2.031 INCHES MINIMUM AND 2.125 INCHES MAXIMUM |
| INSIDE CIRCUMFERENCE | 60.156 INCHES MINIMUM AND 60.344 INCHES MAXIMUM |
| DESIGN TYPE | TWO-PIECE RIVETED |
| HOLE QUANTITY | 2 |
| HOLE DIAMETER | 0.625 INCHES NOMINAL |
| MOUNTING HOLE SPACING | 1-1/4 IN. C TO C,3/4 IN. FROM END OF LOCKING RING TO CENTER OF 1ST HOLE ON A 63-5/16 IN. BOLT CIRCLE |
| SIZE DESIGNATOR | 20X7.33 |
| MATERIAL | STEEL |
| SURFACE TREATMENT | ZINC |
| LEVERAGE SLOT | INCLUDED |
| SLOT WIDTH | 0.563 INCHES MINIMUM AND 0.687 INCHES MAXIMUM |
| SLOT DEPTH | 0.407 INCHES |
| SPECIAL FEATURES | SLOT DEPTH,0.407,0.469 IN. |
