NSN 2530-00-496-2631
Part Details | PNEUMATIC TIRE WHEEL
2530-00-496-2631 A wheel with an integral or removable rim designed to mount a pneumatic tire. Includes wheels without rims but designed to accommodate pneumatic tire rims. May include tire(s). Excludes WHEEL, LANDING GEAR.
Alternate Parts: 44380, 44380D1, 443801, 44380-1, P14, 2530-00-496-2631, 00-496-2631, 2530004962631, 004962631
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | JAN 01, 1963 | 00-496-2631 | 17959 ( WHEEL, PNEUMATIC TIRE ) |
REFERENCE DRAWINGS & PICTURES

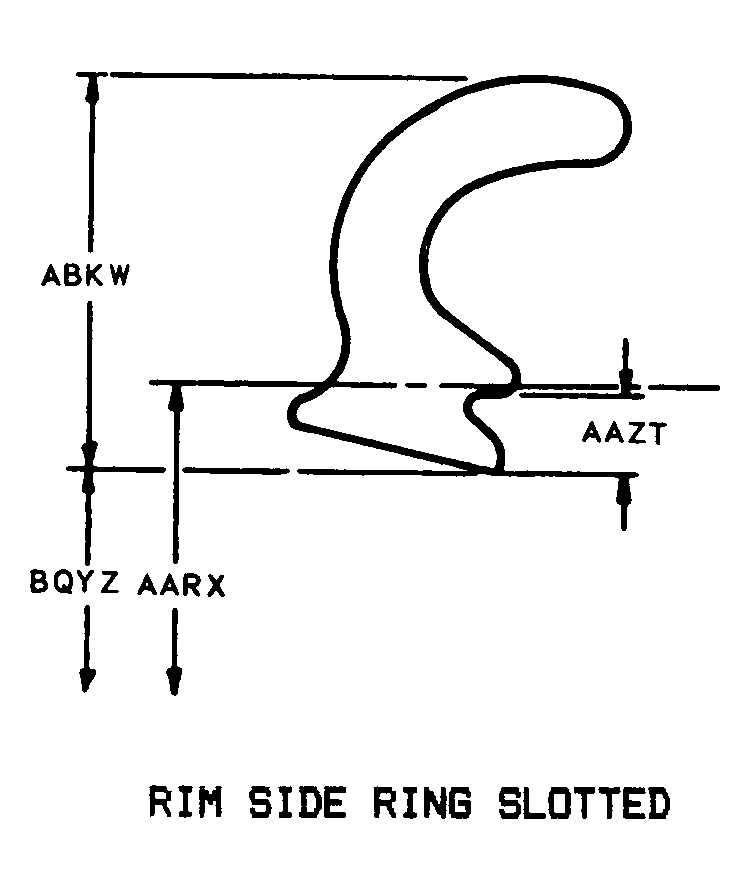

RIM SIDE RING SLOTTED
Cross Reference | NSN 2530-00-496-2631
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 44380 | 09386 | ALLIEDSIGNAL INCALLIEDSIGNAL BRAKING SYSTEMS-WHEEL |
| 44380D1 | 09386 | ALLIEDSIGNAL INCALLIEDSIGNAL BRAKING SYSTEMS-WHEEL |
| 44380-1 | 09386 | ALLIEDSIGNAL INCALLIEDSIGNAL BRAKING SYSTEMS-WHEEL |
| P14 | 51665 | RIVINIUS INC LITTLEFORD MACHINERYDIV |
Technical Data | NSN 2530-00-496-2631
| Characteristic | Specifications |
|---|---|
| TIRE RIM NOMINAL DIAMETER | 16.000 INCHES |
| TIRE | NOT INCLUDED |
| DESIGN FORM | DISK |
| DISK TYPE | SINGLE |
| MOUNTING FACE TYPE | CONVEX |
| OFFSET DISTANCE FROM RIM CENTERLINE TO OUTSIDE WHEEL MOUNTING FACE | 4.750 INCHES MINIMUM AND 4.875 INCHES MAXIMUM |
| LIGHTENING HOLE | INCLUDED |
| LIGHTENING HOLE QUANTITY | 5 |
| LIGHTENING HOLE HUB CAP MOUNTING FEATURE | NOT INCLUDED |
| DESIGN TYPE | INTEGRAL RIM |
| RIM | NOT INCLUDED |
| GROOVE DEPTH | 1.155 INCHES MINIMUM AND 1.218 INCHES MAXIMUM |
| OVERALL WIDTH | 6.641 INCHES NOMINAL |
| EFFECTIVE WIDTH | 5.500 INCHES NOMINAL |
| RING TYPE FOR WHICH DESIGNED | SIDE |
| RING | NOT INCLUDED |
| RING STYLE | RIM SIDE RING SLOTTED |
| BOLT/STUD MOUNTING FACILITY | NOT INCLUDED |
| VALVE HOLE SHAPE | ROUND |
| HOLE LOCATION | LOCATED 4 IN. APPROX FROM OUTSIDE OF WHEEL MTG FACE |
| MOUNTING TYPE FOR WHICH DESIGNED | SINGLE TIRE |
| HUB CHARACTERISTIC | DEMOUNTABLE |
| HUB | NOT INCLUDED |
| PILOT HOLE DIAMETER | 4.970 INCHES MINIMUM AND 4.980 INCHES MAXIMUM |
| MOUNTING HOLE QUANTITY | 5 |
| MOUNTING HOLE DIAMETER | 1.255 INCHES MINIMUM AND 1.285 INCHES MAXIMUM |
| MOUNTING BOLT CIRCLE DIAMETER | 6.871 INCHES MINIMUM AND 6.879 INCHES MAXIMUM |
