NSN 2530-00-492-6413
Part Details | HYDRAULIC BRAKE MASTER CYLINDER PUSH ROD
2530-00-492-6413 An item in the form of a rod with one end designed to mate with the socket of a PISTON, HYDRAULIC BRAKE, MASTER CYLINDER, the other end designed to connect with various forms of rod connectors.
Alternate Parts: F6438, FC6438, 2530-00-492-6413, 00-492-6413, 2530004926413, 004926413
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | JAN 01, 1963 | 00-492-6413 | 18736 ( PUSH ROD, HYDRAULIC BRAKE MASTER CYLINDER ) |
REFERENCE DRAWINGS & PICTURES
THREADED INTERNAL, HEXAGON

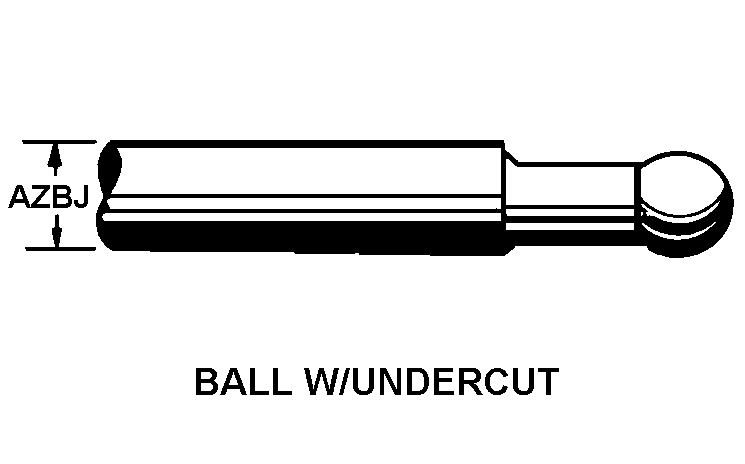

BALL W/UNDERCUT
Cross Reference | NSN 2530-00-492-6413
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| F6438 | 63477 | FEDERAL MOGUL CORPSUB WAGNER BRAKE |
| FC6438 | 63477 | FEDERAL MOGUL CORPSUB WAGNER BRAKE |
Technical Data | NSN 2530-00-492-6413
| Characteristic | Specifications |
|---|---|
| LINK ROD CONNECTING END STYLE | THREADED INTERNAL, HEXAGON |
| THREAD SIZE | 9/16 -18 NF |
| PISTON SOCKET END STYLE | BALL W/UNDERCUT |
| ROD DIAMETER | 0.500 INCHES NOMINAL |
| MATERIAL | STEEL |
| OVERALL LENGTH | 6.125 INCHES NOMINAL |
