NSN 2530-00-485-0993
Part Details | HYDRAULIC BRAKE MASTER CYLINDER PUSH ROD
2530-00-485-0993 An item in the form of a rod with one end designed to mate with the socket of a PISTON, HYDRAULIC BRAKE, MASTER CYLINDER, the other end designed to connect with various forms of rod connectors.
Alternate Parts: 220T156, 2530-00-485-0993, 00-485-0993, 2530004850993, 004850993
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | MAY 28, 1969 | 00-485-0993 | 18736 ( PUSH ROD, HYDRAULIC BRAKE MASTER CYLINDER ) |
REFERENCE DRAWINGS & PICTURES

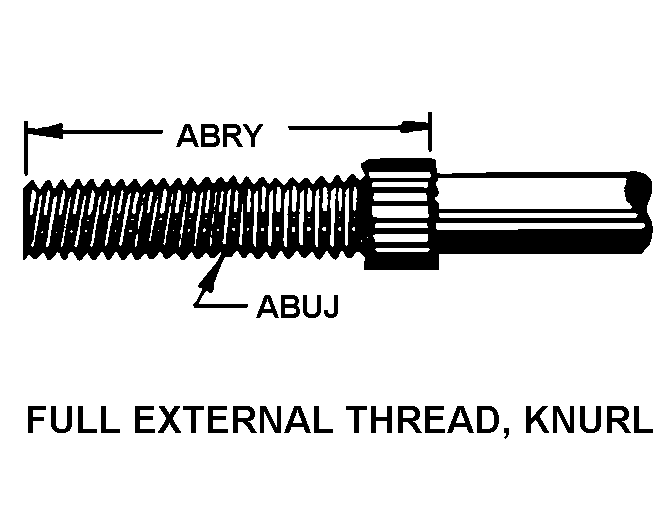

FULL EXTERNAL THREAD, KNURL
SPERICAL
Cross Reference | NSN 2530-00-485-0993
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 220T156 | 27315 | MORRIS MATERIAL HANDLING, INC. |
Technical Data | NSN 2530-00-485-0993
| Characteristic | Specifications |
|---|---|
| LINK ROD CONNECTING END STYLE | FULL EXTERNAL THREAD, KNURL |
| LENGTH | 2.625 INCHES NOMINAL |
| THREAD SIZE | 1/2 IN. 20 THD |
| PISTON SOCKET END STYLE | SPERICAL |
| ROD DIAMETER | 0.625 INCHES NOMINAL |
| MATERIAL | STEEL |
| OVERALL LENGTH | 4.125 INCHES NOMINAL |
| END ITEM IDENTIFICATION | HARNISCHFEGER CORP.;MODEL M320T2 CRANE TRUCK MOUNTED,NSN 3810-00-151-4431 |
