NSN 2530-00-426-5664
Part Details | AUTOMOTIVE WHEEL LOCK RING
2530-00-426-5664 A one-piece metal device designed to fit a matching groove in the outer edge of a wheel or wheel rim for holding the side ring in position. It may be split.
Alternate Parts: LR88RTH50, LR88RTH50, 6F5699, 2530-00-426-5664, 00-426-5664, 2530004265664, 004265664
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | JAN 01, 1963 | 00-426-5664 | 10968 ( RING, LOCK, AUTOMOTIVE WHEEL ) |
REFERENCE DRAWINGS & PICTURES

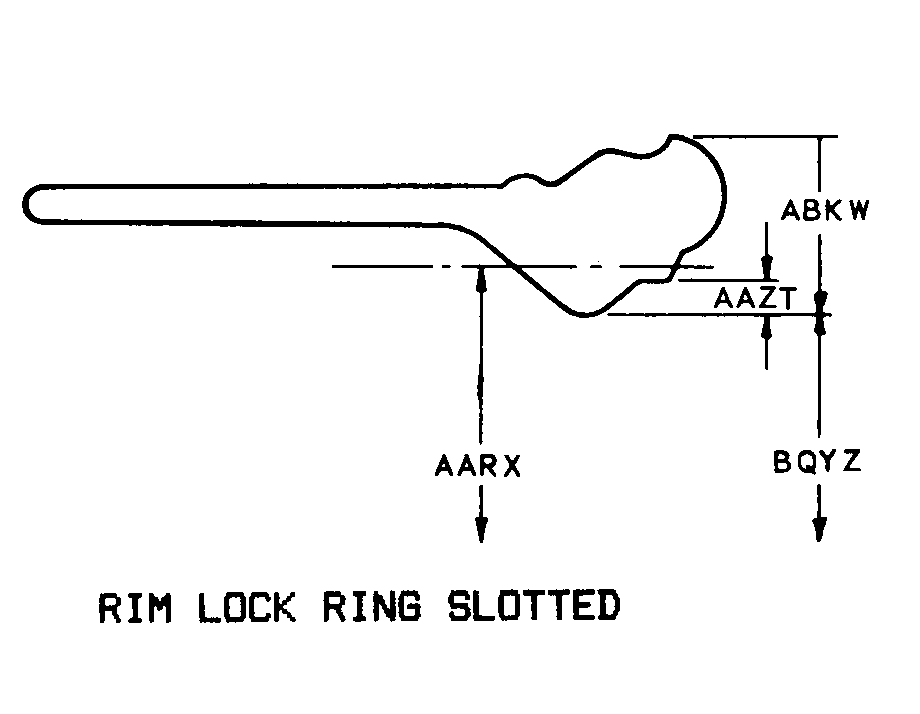

RIM LOCK RING SLOTTED
Cross Reference | NSN 2530-00-426-5664
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| LR88RTH50 | 73195 | ACCURIDE CORPORATION |
| LR88RTH50 | 22337 | BRIDGESTONE AMERICAS TIREOPERATIONS, LLC |
| 6F5699 | 11083 | CATERPILLAR INC.DBA CATERPILLAR |
Technical Data | NSN 2530-00-426-5664
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | RIM LOCK RING SLOTTED |
| INSIDE DIAMETER | 23.000 INCHES NOMINAL |
| SLOT DEPTH | 2.000 INCHES NOMINAL |
| OVERALL HEIGHT | 2.750 INCHES NOMINAL |
| INSIDE CIRCUMFERENCE | 77.000 INCHES NOMINAL |
| DESIGN TYPE | SPLIT SNAP-ON |
| SIZE DESIGNATOR | 24X8 |
| MATERIAL | STEEL |
| SURFACE TREATMENT | PAINT |
| VALVE CLEARANCE NOTCH QUANTITY | 1 |
| LEVERAGE SLOT | NOT INCLUDED |
| SPECIAL FEATURES | PAINTED GRAY |
