NSN 2530-00-424-0536
Part Details | AUTOMOTIVE WHEEL LOCK RING
2530-00-424-0536 A one-piece metal device designed to fit a matching groove in the outer edge of a wheel or wheel rim for holding the side ring in position. It may be split.
Alternate Parts: C109, 2530-00-424-0536, 00-424-0536, 2530004240536, 004240536
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | JAN 01, 1963 | 00-424-0536 | 10968 ( RING, LOCK, AUTOMOTIVE WHEEL ) |
REFERENCE DRAWINGS & PICTURES

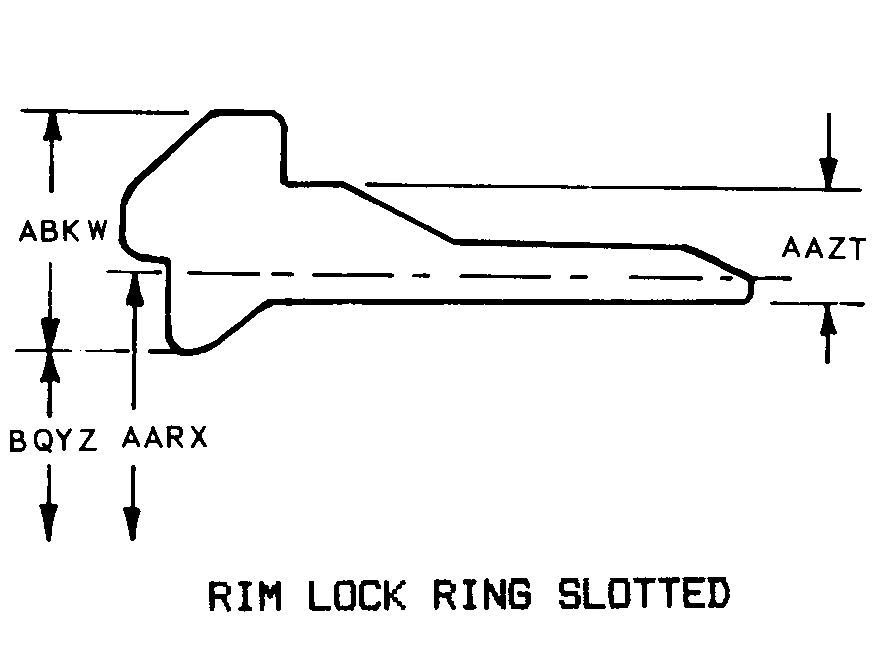

RIM LOCK RING SLOTTED
Cross Reference | NSN 2530-00-424-0536
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C109 | 35311 | AMERICAN STANDARD INCWESTINGHOUSE AIR BRAKE CO DIV |
Technical Data | NSN 2530-00-424-0536
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | RIM LOCK RING SLOTTED |
| INSIDE DIAMETER | 19.500 INCHES NOMINAL |
| SLOT DEPTH | 0.250 INCHES NOMINAL |
| OVERALL HEIGHT | 0.875 INCHES NOMINAL |
| INSIDE CIRCUMFERENCE | 56.797 INCHES NOMINAL |
| DESIGN TYPE | SPLIT SNAP-ON |
| SIZE DESIGNATOR | 20X7 |
| MATERIAL | STEEL |
| SURFACE TREATMENT | PAINT |
| LEVERAGE SLOT | NOT INCLUDED |
