NSN 2530-00-230-9792
Part Details | BALL SOCKET SEAT
2530-00-230-9792 A rigid item, usually circular in shape, having a concave or bevel bearing surface on one end. It is designed to mate with and provide a wear surface for the ball of a ball stud, control rod, arm, or the like. The other end is usually flat, flanged, or offset and is usually designed to mate with a flat surface or spring. Includes metal items having a plastic ball socket insert. See also WASHER, CONCAVE.
Alternate Parts: 4769247, 47692470, 4769247-0, S9668, S-9668, S16081, S-16081, S5340, 47692470, 4769247-0, 2530-00-230-9792, 00-230-9792, 2530002309792, 002309792
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | OCT 14, 1970 | 00-230-9792 | 19451 ( SEAT, BALL SOCKET ) |

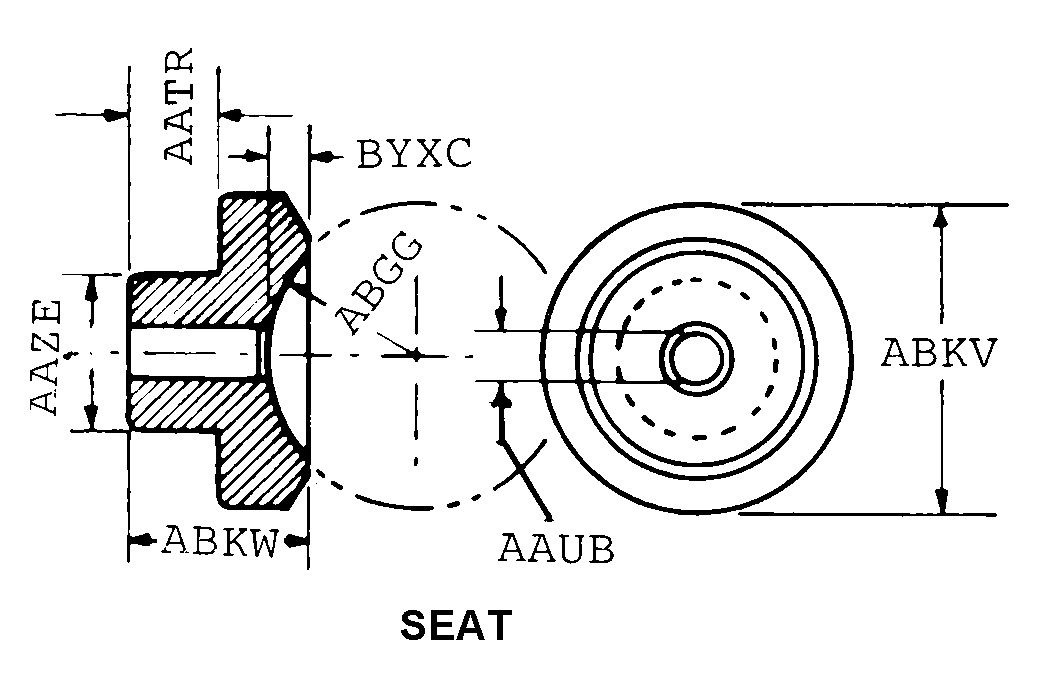

REFERENCE DRAWINGS & PICTURES
SEAT
Cross Reference | NSN 2530-00-230-9792
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4769247 | 6N299 | AGCO CORPPARTS OPN |
| 4769247-0 | 92392 | ALLIS-CHALMERS CORP |
| S-9668 | 72210 | COLUMBUS AUTO PARTS CO |
| S-16081 | 72210 | COLUMBUS AUTO PARTS CO |
| S5340 | 72210 | COLUMBUS AUTO PARTS CO |
| 4769247-0 | 0AHU0 | KALMAR AC INC |
Technical Data | NSN 2530-00-230-9792
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | SEAT |
| RADIUS | 0.500 INCHES NOMINAL |
| BALL SEAT DEPTH | 0.135 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.935 INCHES NOMINAL |
| SHANK DIAMETER | 0.500 INCHES NOMINAL |
| SHANK LENGTH | 0.465 INCHES NOMINAL |
| OVERALL HEIGHT | 0.750 INCHES NOMINAL |
| HOLE DIAMETER | 0.188 INCHES NOMINAL |
