NSN 2520-00-264-7247
Part Details | PROPELLER SHAFT DUST CAP
2520-00-264-7247 A cap designed to exclude dirt from shaft spline, and retain lubricant.
Alternate Parts: 11429, 1-14-29, K11429, K1-14-29, 21492, 21492, 974442R1, 2520-00-264-7247, 00-264-7247, 2520002647247, 002647247
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | JAN 01, 1961 | 00-264-7247 | 10960 ( CAP, DUST, PROPELLER SHAFT ) |
REFERENCE DRAWINGS & PICTURES

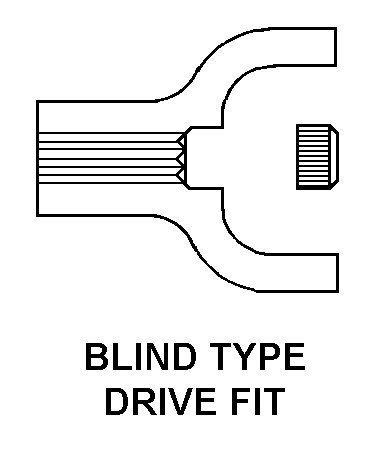

BLIND TYPE DRIVE IT
Cross Reference | NSN 2520-00-264-7247
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1-14-29 | 95019 | DANA CORPSPICER TRANSMISSION DIV |
| K1-14-29 | 95019 | DANA CORPSPICER TRANSMISSION DIV |
| 21492 | 30076 | HYSTER-YALE GROUP, INC. |
| 21492 | 04627 | HYSTER-YALE GROUP, INC. |
| 974442R1 | 92679 | NAVISTAR INTL CORPMELROSE PARK ENGINE PLANT LOCATION |
Technical Data | NSN 2520-00-264-7247
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | BLIND TYPE DRIVE IT |
| OUTSIDE DIAMETER | 1.370 INCHES MINIMUM AND 1.373 INCHES MAXIMUM |
| INSIDE DIAMETER | 1.308 INCHES MINIMUM AND 1.311 INCHES MAXIMUM |
| SPECIAL FEATURES | SPLINE MINOR DIA 0.906 IN./MAJOR DIA 1.062-1.067 IN.;GRIPPING SURFACE CONDITION-PLAIN;MATL THK 0.031 IN.;SPLINE QTY 16;BORE TYPE-STRAIGHT SPLINE |
