NSN 2520-00-223-4908
Part Details | PROPELLER SHAFT DUST CAP
2520-00-223-4908 A cap designed to exclude dirt from shaft spline, and retain lubricant.
Alternate Parts: 198215H1, 198215H1, DC92N2, 198215H1, 2520-00-223-4908, 00-223-4908, 2520002234908, 002234908
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | MAR 16, 1970 | 00-223-4908 | 10960 ( CAP, DUST, PROPELLER SHAFT ) |
REFERENCE DRAWINGS & PICTURES

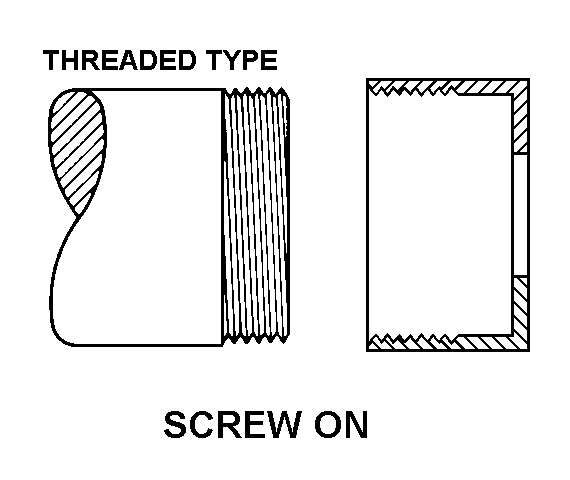

SCREW ON
Cross Reference | NSN 2520-00-223-4908
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 198215H1 | 0SAT8 | KOMATSU AMERICA CORP. |
| 198215H1 | 29510 | KOMATSU AMERICAN INTL CO |
| DC92N2 | 78500 | MERITOR HEAVY VEHICLE SYSTEMS LLC |
| 198215H1 | 92679 | NAVISTAR INTL CORPMELROSE PARK ENGINE PLANT LOCATION |
Technical Data | NSN 2520-00-223-4908
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | SCREW ON |
| OUTSIDE DIAMETER | 4.000 INCHES NOMINAL |
| INSIDE DIAMETER | 3.700 INCHES NOMINAL |
| OVERALL WIDTH | 1.375 INCHES NOMINAL |
| PLAIN HOLE DIAMETER | 3.048 INCHES NOMINAL |
| THREAD SIZE | 3-3/4-20 |
| THREAD LENGTH | 0.875 INCHES NOMINAL |
| SPECIAL FEATURES | FURNISHED W/CORK SEAL AND 2 PLASTIC WASHERS FOR 2.375 IN. SHAFT DIA;R.H. THS;GRIPPING SURFACE CONDITION-PLAIN;MATL THK 0.135/0.160 IN.;SCREW THD SERIES DESIGNATOR-NS |
