NSN 2510-01-318-4149
Part Details | VEHICULAR SUSPENSION STRUT ASSEMBLY
2510-01-318-4149 Agroup of components that incorporate the strut cartridge, coil spring, wheel spindle and the upper steering pivot which function as a single unit and is used in conjunction with a separate lower control arm and lower ball joint to affect steering and absorb shock. May be air adjustable. Excludes SHOCK ABSORBER (as modified)
Alternate Parts: 4186832, 4186832, 81715, 71715, 63619, 2510-01-318-4149, 01-318-4149, 2510013184149, 013184149
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | APR 18, 1990 | 01-318-4149 | 37297 ( STRUT ASSEMBLY, VEHICULAR SUSPENSION ) |
REFERENCE DRAWINGS & PICTURES

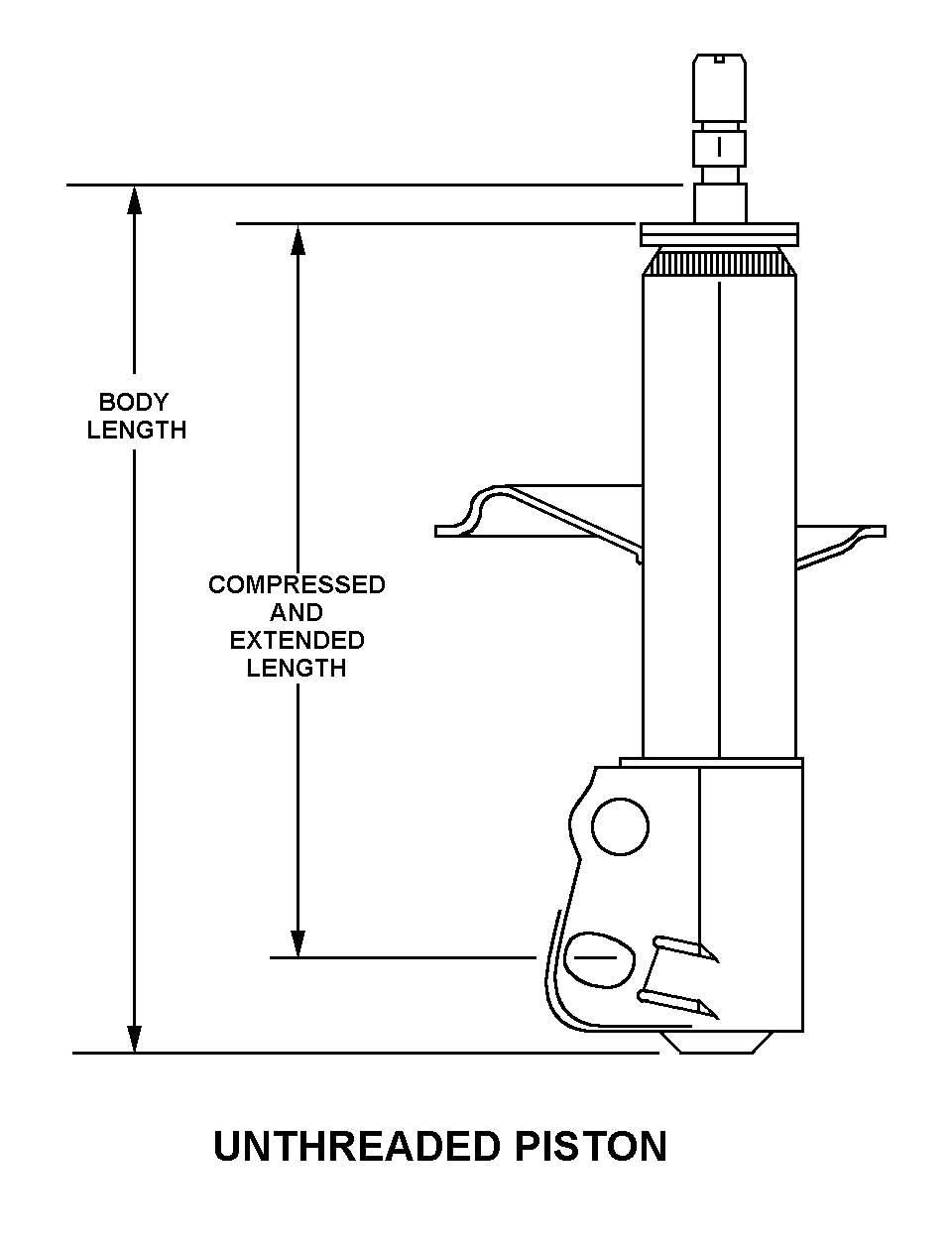

UNTHREADED PISTON
Cross Reference | NSN 2510-01-318-4149
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4186832 | 86403 | CHRYSLER CORPSERVICE AND PARTS OPNS |
| 4186832 | 12204 | DAIMLER CHRYSLER |
| 81715 | 76445 | TENNECO INC |
| 71715 | 76445 | TENNECO INC |
| 63619 | 76445 | TENNECO INC |
Technical Data | NSN 2510-01-318-4149
| Characteristic | Specifications |
|---|---|
| OPERATION METHOD | HYDRAULIC |
| NOMINAL EXTENDED LENGTH | 20.625 INCHES |
| NOMINAL COMPRESSED LENGTH | 13.875 INCHES |
| STRUT STYLE | UNTHREADED PISTON |
| NOMINAL STRUT BODY LENGTH | 14.250 INCHES |
| END ITEM IDENTIFICATION | PASSENGER CAR,CHRYSLER CORP.,1981 SERIES |
