NSN 2510-01-312-4529
Part Details | VEHICULAR SUSPENSION STRUT CARTRIDGE
2510-01-312-4529 A cylindrical device specifically designed to fit into the housing of a strut assembly providing a convenient method to restore strut suspension. Excludes SHOCK ABSORBER (as modified).
Alternate Parts: 21376301, 213763-01, 2510-01-312-4529, 01-312-4529, 2510013124529, 013124529
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | DEC 15, 1989 | 01-312-4529 | 37296 ( STRUT CARTRIDGE, VEHICULAR SUSPENSION ) |

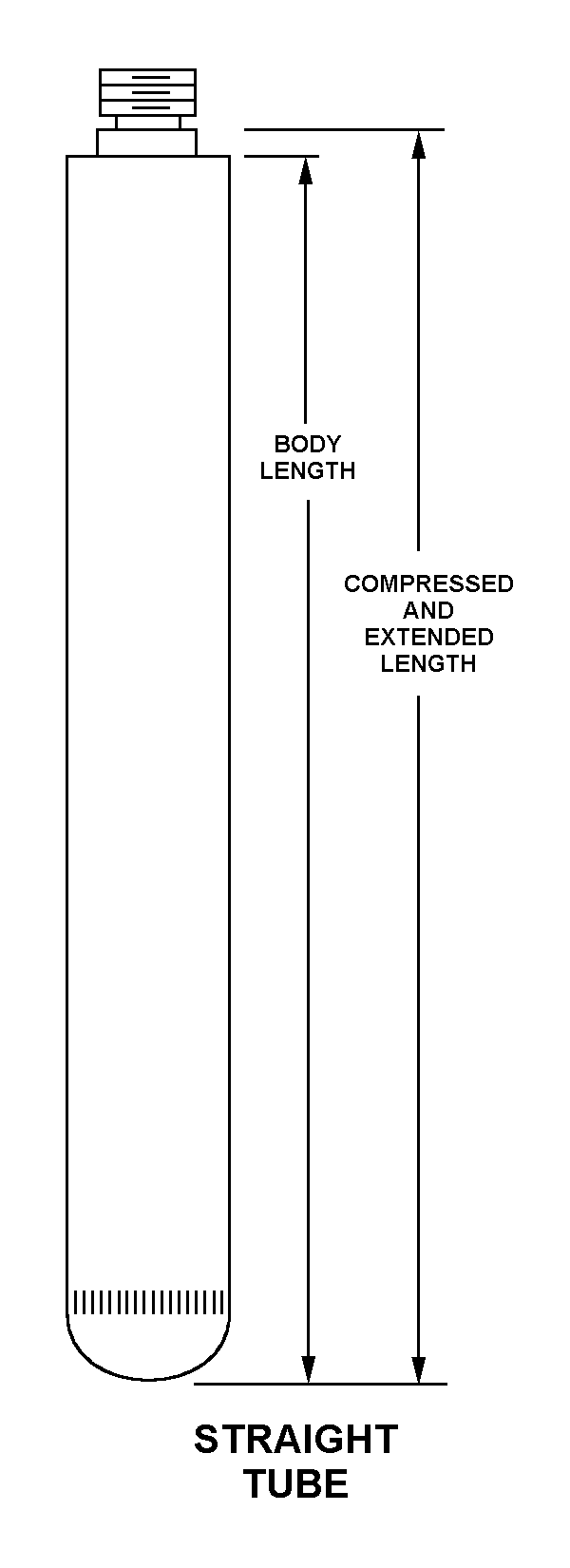

REFERENCE DRAWINGS & PICTURES
STRAIGHT TUBE
Cross Reference | NSN 2510-01-312-4529
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 213763-01 | 11132 | REMCO HYDRAULICS INCSIERRA CYLINDERS PRODUCT LINE |
Technical Data | NSN 2510-01-312-4529
| Characteristic | Specifications |
|---|---|
| CARTRIDGE STYLE | STRAIGHT TUBE |
| NOMINAL CARTRIDGE BODY LENGTH | 35.980 INCHES |
| SPECIAL FEATURES | ALUMINUM MATERIAL; ULTIMATE STRENGTH 42 KSI MIN; YIELD STRENGTH 35 KSI MIN; DIAMETER 3.00 INCHES; THREADED |
| END ITEM IDENTIFICATION | TRANS HANDLING SYSTEM |
