NSN 2510-01-298-3670
Part Details | DIRECT ACTION SHOCK ABSORBER
2510-01-298-3670 A damper, either frictional or hydraulic, designed to dampen the shock of suddenly applied force and/or to control spring rebound and oscillation, usually attached to the vehicle frame, body or hull and connected to an axle, spring, spring support web or pad or between suspension arms of track-laying vehicles. See also MOUNT, RESILIENT and SHOCK ABSORBER, LEVER ACTION.
Alternate Parts: 22064066, 4993591, 22064066, 81482, 2510-01-298-3670, 01-298-3670, 2510012983670, 012983670
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | APR 14, 1989 | 01-298-3670 | 18434 ( SHOCK ABSORBER, DIRECT ACTION ) |
REFERENCE DRAWINGS & PICTURES

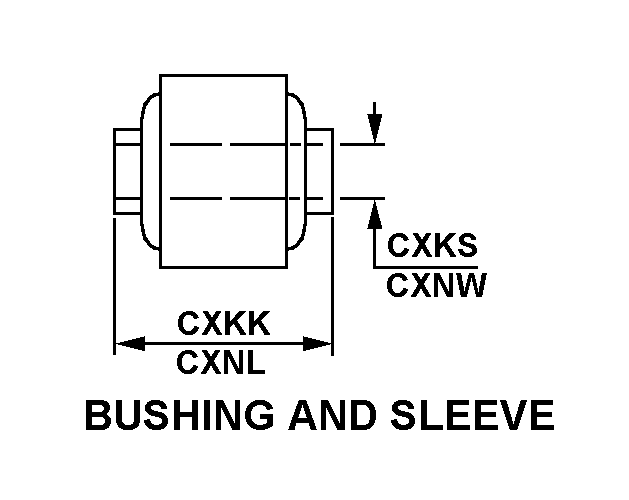

BUSHING AND SLEEVE
CROSS PIN MOUNTING, DRILLED
BUSHING AND SLEEVE
CROSS PIN MOUNTING, DRILLED
Cross Reference | NSN 2510-01-298-3670
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 22064066 | 11862 | GENERAL MOTORS CORPCHEVROLET MOTOR DIV |
| 4993591 | 11862 | GENERAL MOTORS CORPCHEVROLET MOTOR DIV |
| 22064066 | 7X677 | GENERAL MOTORS LLCDBA GENERAL MOTORS |
| 81482 | 6B719 | MAREMONT CORPGABRIEL DIV |
Technical Data | NSN 2510-01-298-3670
| Characteristic | Specifications |
|---|---|
| OPERATION METHOD | HYDRAULIC |
| PISTON END CONNECTION STYLE | CROSS PIN MOUNTING, DRILLED |
| CYLINDER END CONNECTION STYLE | BUSHING AND SLEEVE |
| SPECIAL FEATURES | GENERAL MOTORS TRUCK 1982 THRU 1988 MODEL NUMBER CS-10 |
