NSN 2510-01-274-1712
Part Details | DIRECT ACTION SHOCK ABSORBER
2510-01-274-1712 A damper, either frictional or hydraulic, designed to dampen the shock of suddenly applied force and/or to control spring rebound and oscillation, usually attached to the vehicle frame, body or hull and connected to an axle, spring, spring support web or pad or between suspension arms of track-laying vehicles. See also MOUNT, RESILIENT and SHOCK ABSORBER, LEVER ACTION.
Alternate Parts: 4940631, 266402, 2510-01-274-1712, 01-274-1712, 2510012741712, 012741712
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | MAR 05, 1988 | 01-274-1712 | 18434 ( SHOCK ABSORBER, DIRECT ACTION ) |
REFERENCE DRAWINGS & PICTURES

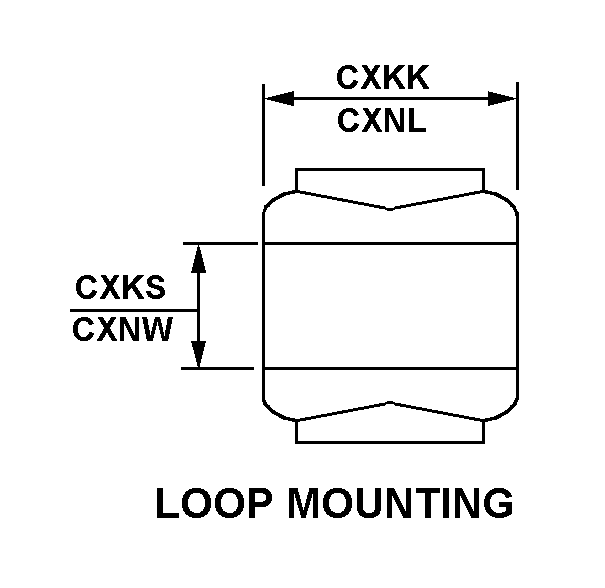

LOOP MOUNTING
LOOP MOUNTING
Cross Reference | NSN 2510-01-274-1712
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4940631 | 72560 | GENERAL MOTORS CORPDELCO PRODUCTS DIV |
| 266402 | 07935 | WASHEX INCORPORATED |
Technical Data | NSN 2510-01-274-1712
| Characteristic | Specifications |
|---|---|
| OPERATION METHOD | HYDRAULIC |
| PISTON END CONNECTION STYLE | LOOP MOUNTING |
| PISTON END NOMINAL OVERALL LENGTH | 44.5 MILLIMETERS |
| PISTON END NOMINAL INSIDE DIAMETER | 23.8 MILLIMETERS |
| CYLINDER END CONNECTION STYLE | LOOP MOUNTING |
| CYLINDER END NOMINAL OVERALL LENGTH | 44.5 MILLIMETERS |
| CYLINDER END NOMINAL INSIDE DIAMETER | 23.8 MILLIMETERS |
| NOMINAL EXTENDED LENGTH | 387.1 MILLIMETERS |
| NOMINAL COMPRESSED LENGTH | 254.7 MILLIMETERS |
| PROTECTIVE SHIELD TYPE | DUST |
