NSN 2510-01-238-0950
Part Details | DIRECT ACTION SHOCK ABSORBER
2510-01-238-0950 A damper, either frictional or hydraulic, designed to dampen the shock of suddenly applied force and/or to control spring rebound and oscillation, usually attached to the vehicle frame, body or hull and connected to an axle, spring, spring support web or pad or between suspension arms of track-laying vehicles. See also MOUNT, RESILIENT and SHOCK ABSORBER, LEVER ACTION.
Alternate Parts: MB109561, 50044, 500-44, 22046424, 22002927, 22046424, 22002927, 20734, 2510-01-238-0950, 01-238-0950, 2510012380950, 012380950
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | AUG 09, 1986 | 01-238-0950 | 18434 ( SHOCK ABSORBER, DIRECT ACTION ) |
REFERENCE DRAWINGS & PICTURES

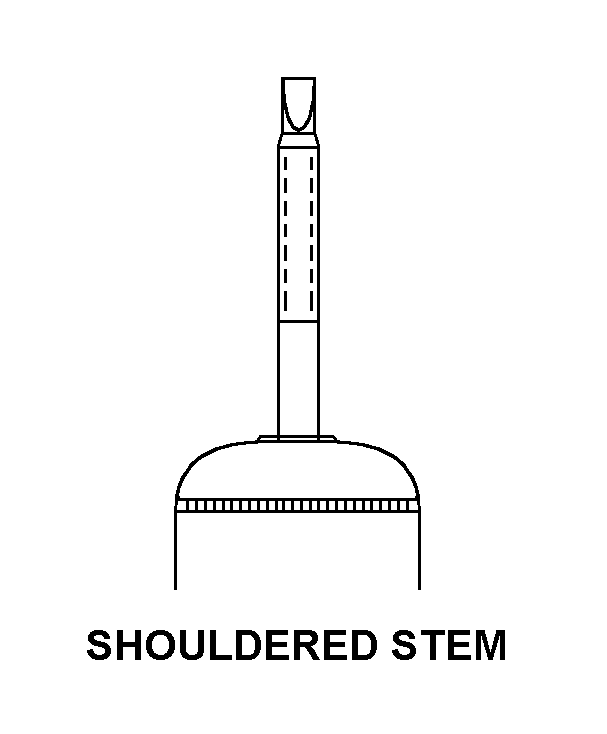

SHOULDERED STEM

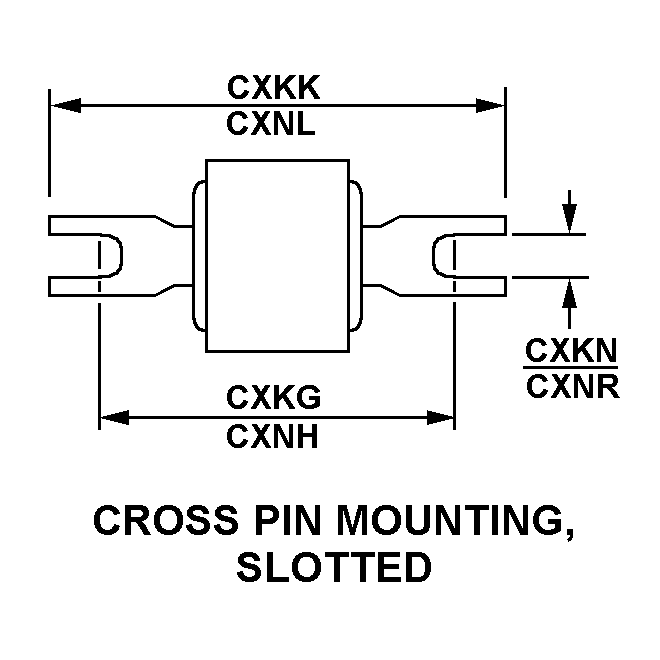

CROSS PIN MOUNTING, SLOTTED
SHOULDERED STEM
CROSS PIN MOUNTING, SLOTTED
Cross Reference | NSN 2510-01-238-0950
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MB109561 | 12204 | DAIMLER CHRYSLER |
| 500-44 | 61928 | GENERAL MOTORS CORPAC-DELCO DIV |
| 22046424 | 61928 | GENERAL MOTORS CORPAC-DELCO DIV |
| 22002927 | 61928 | GENERAL MOTORS CORPAC-DELCO DIV |
| 22046424 | 7X677 | GENERAL MOTORS LLCDBA GENERAL MOTORS |
| 22002927 | 7X677 | GENERAL MOTORS LLCDBA GENERAL MOTORS |
| 20734 | 45826 | HARSCO CORPORATIONDBA PATENT CONSTRUCTION SYSTEMS |
Technical Data | NSN 2510-01-238-0950
| Characteristic | Specifications |
|---|---|
| OPERATION METHOD | GAS |
| PISTON END CONNECTION STYLE | SHOULDERED STEM |
| PISTON END NOMINAL CONNECTION THREAD SIZE | 0.375 INCHES |
| CYLINDER END CONNECTION STYLE | CROSS PIN MOUNTING, SLOTTED |
| CYLINDER END NOMINAL HOLE CENTER TO CENTER DISTANCE | 2.438 INCHES |
| CYLINDER END NOMINAL OVERALL LENGTH | 2.938 INCHES |
| CYLINDER END NOMINAL BOLT HOLE DIAMETER | 0.312 INCHES |
| NOMINAL EXTENDED LENGTH | 13.875 INCHES |
| NOMINAL COMPRESSED LENGTH | 8.875 INCHES |
| PROTECTIVE SHIELD TYPE | NO PROTECTION |
| DUTY TYPE | HEAVY |
| FURNISHED ITEMS AND QUANTITY | 2 COMPRESSION BUMPER AND 1 HEX JAM NUT AND 1 HEXAGON NUT AND 2 RETAINING WASHER |
| END ITEM IDENTIFICATION | 1987-89 DODGE DAKOTA 2WD,FRONT |
