NSN 1680-00-079-4352
Part Details | REMOTE CONTROL LEVER
1680-00-079-4352 A rigid item usually in the form of an arm of various shapes and cross sections, containing two or more holes so spaced that one serves as a pivot with or without hubs and must have a definite means for securing to a shaft (such as threaded hole for set-screw, keyway(s), splines, serrations or some clamping device). The other hole(s) connect(s) to CONNECTING LINK, RIGID; WIRE ROPE ASSEMBLY, SINGLE LEG; or CLEVIS, ROD END; to provide transmission of movement to other parts of the mechanism. See also BELL CRANK. For manually operated items see LEVER, MANUAL CONTROL.
Alternate Parts: 175446, 1680-00-079-4352, 00-079-4352, 1680000794352, 000794352
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | DEC 04, 1967 | 00-079-4352 | 22099 ( LEVER, REMOTE CONTROL ) |
REFERENCE DRAWINGS & PICTURES

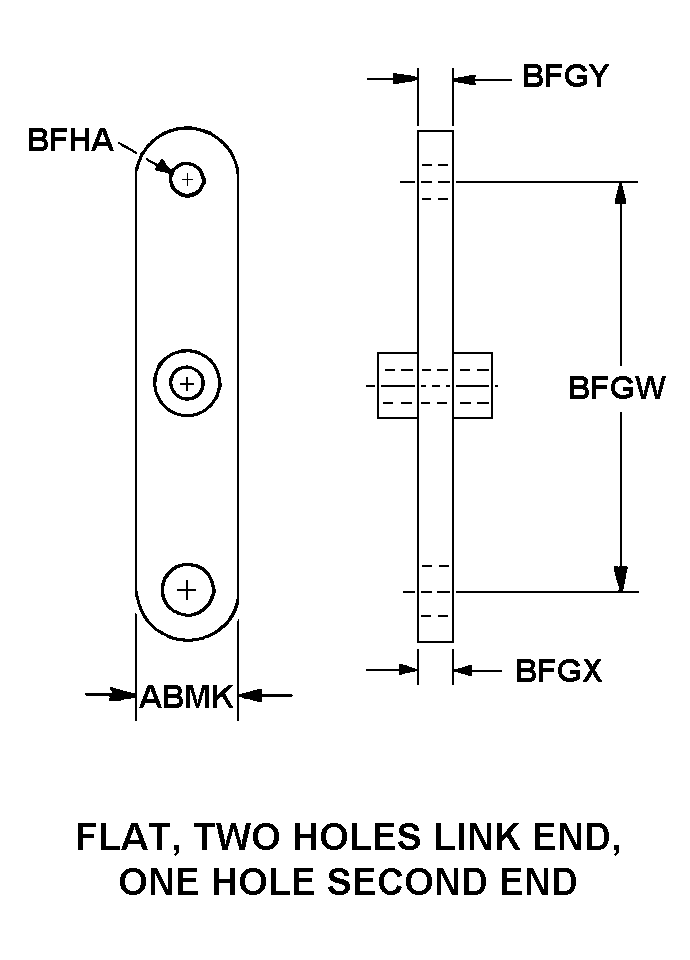

FLAT, TWO HOLES LINK END, ONE HOLE SECOND END
Cross Reference | NSN 1680-00-079-4352
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 175446 | 71791 | CURTISS-WRIGHT CONTROLS, INC.DBA CURTISS WRIGHT |
Technical Data | NSN 1680-00-079-4352
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | FLAT, TWO HOLES LINK END, ONE HOLE SECOND END |
| OVERALL WIDTH | 0.500 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN LINK AND SHAFT HOLES | 1.500 INCHES NOMINAL |
| SHAFT END THICKNESS | 0.100 INCHES NOMINAL |
| LINK END THICKNESS | 0.100 INCHES NOMINAL |
| LINK END HOLE DIAMETER | 0.180 INCHES NOMINAL |
| BORE TYPE | PLAIN STRAIGHT |
| BORE DIAMETER | 0.325 INCHES NOMINAL |
| BORE LENGTH | 2.520 INCHES NOMINAL |
| SPECIAL FEATURES | USED ON AIRCRAFT HYDRAULIC VACUUM DE-ICING SYSTEMS |
