NSN 1620-01-296-4328
Part Details | LANDING GEAR DIRECT ACTION SHOCK ABSORBER
1620-01-296-4328 A pneumatically or hydraulically damped coupling used to absorb forces generated by the contact of aircraft landing gear with a landing surface.
Alternate Parts: 2006101105, 2006101-105, 1620-01-296-4328, 01-296-4328, 1620012964328, 012964328
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | MAR 20, 1989 | 01-296-4328 | 38261 ( SHOCK ABSORBER, DIRECT ACTION, LANDING GEAR ) |
REFERENCE DRAWINGS & PICTURES
BEARING TYPE

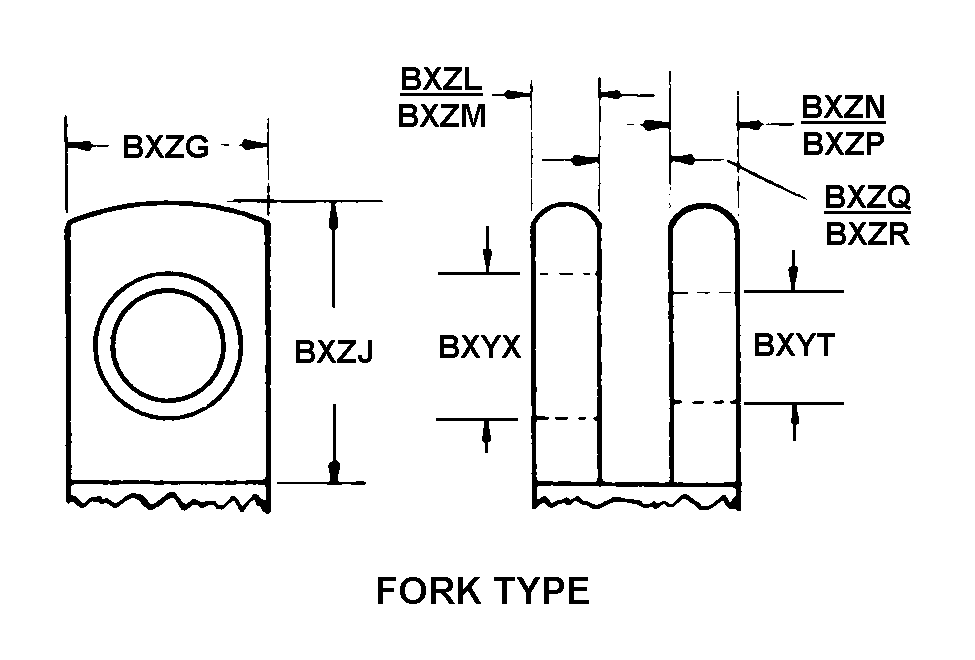

FORK TYPE
Cross Reference | NSN 1620-01-296-4328
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2006101-105 | 17576 | GOODRICH CORPDBA GOODRICH CORP |
Technical Data | NSN 1620-01-296-4328
| Characteristic | Specifications |
|---|---|
| OPERATION METHOD | HYDRAULIC |
| HYDRAULIC SYSTEM FLUID CAPACITY | 60.0 CUBIC INCHES |
| FILLER PLUG | INCLUDED |
| SIDE ATTACHED FLUID TANK | NOT INCLUDED |
| PISTON END CONNECTION STYLE | BEARING TYPE |
| CYLINDER END CONNECTION STYLE | FORK TYPE |
| COMPRESSED LENGTH | 32.660 INCHES NOMINAL |
| EXTENDED LENGTH | 36.850 INCHES NOMINAL |
| STROKE LENGTH | 2.420 INCHES NOMINAL |
| SPECIAL FEATURES | USED ON MAIN LANDING GEAR.FORM,FIT,FUNTION |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| END ITEM IDENTIFICATION | F-16 AIRCRAFT |
| FSC APPLICATION DATA | AIRCRAFT HYDRAULIC,VACUUM,DEICING SYSTEMS |
